SATAKE MultiMix

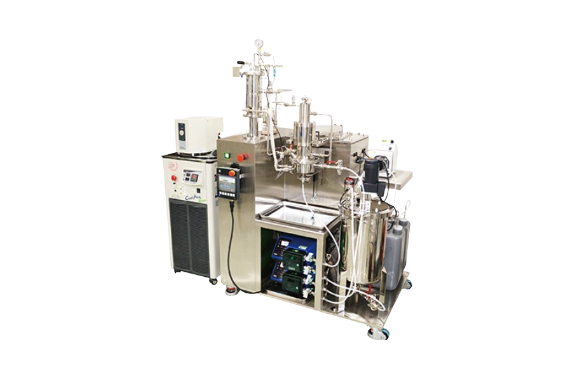

SATAKE High Precision Wet Classifier
Manufacturer: SATAKE MultiMix Corporation
Model: High-precision wet classifier
Features
- Classifier is equipped with a classifying rotor which rotates at high speed.
- The classifying rotor has a classification blade to stabilize the centrifugal field.
Specifications
| Machine Specifications | ||||
|---|---|---|---|---|
| Item | i-Classifier「Standard model」 | i-Classifier「Laboratory model」 | ||
| Dimension Weight | 890×1155×1652 Approx. 430kg | Main unit | W200×D360×H600・20kg | |
| Control box | W300×D330×H200・10kg | |||
| Rotational speed | 666～6660rpm | 1000～10000rpm | ||
| Classifier rotor tip speed | 3～30㎧ | Approx. 2～20㎧ | ||
| Classifier particle size | 0.5～20μm | 0.5～20μm | ||
| Treatment volume | Max 50L/hr,100L/hr | Max. 5L/h | ||
| Classifier chamber volume | 0.4L | Approx. 50ml | ||
| Wetted part material | Rotor | Any of the following (Depend on specs) SUS304/SUS316L/Resin | Resin | |
| Stator | Any of the following (Depend on specs) SUS304/SUS316L | Any of the following SUS304/SUS316L | ||
| O-ring | Any of the following (Depend on specs) FKM/FFKM | FKM/FFKM | ||
| Ferrule packing | PTFE | FKM/FFKM | ||
| Others | Any of the following (Depend on specs) SUS304/SUS316L | Any of the following SUS304/SUS316L | ||
| Shaft seal | Double mechanical seal | – | ||
| Seal liquid | Water, Organic dispersant (Depend on specs) | – | ||
| Utility specifications | ||
|---|---|---|
| Item | i-Classifier「Standard model」 | i-Classifier「Laboratory model」 |
| Power supply | AC200V, 3-phase, 50/60Hz | AC100V, Single phase, 50/60Hz |
| Power | 2200W (Main unit only) 4000W (Full package) | 1000W |
| Compress air / Nitrogen | High pressure 0.7MPa (Pressure vessel) | － |
| Cooling water | Normal pressure (20～Below 30℃, Above 2～3 L/min) | Normal pressure (20～Below 30℃, Above 2～3 L/min) |
