Manufacturer: SATAKE MultiMix Corporation
Model: HR200

Features

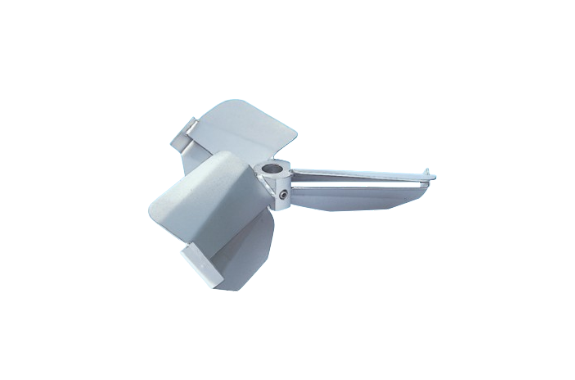

• The unique double-wing design features three wide wings and auxiliary wings.
• The slot effect from the gap flap eliminates separation at the rear of the main wing, boosting discharge flow rate and speed.
• By positioning the rotation axis closer to the tank wall and adding a single baffle, a stable single-loop up-and-down circulation flow is achieved.

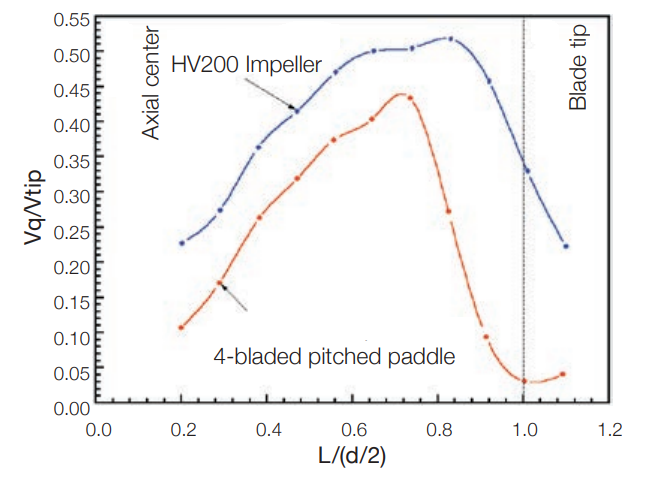

Comparison of discharge performance by LDV

• Tank diameter: D
• Impeller diameter: d
• Rotation speed: N
• Vertical axis: Discharge velocity (Vq),
  Blade tip peripheral speed (Vtip)
• Horizontal axis: Impeller radius
• D = 490 mm, d/D = 0.3, N = 300 min-1
