SATAKE MRF Reactor

SATAKE MRF Reactor

Manufacturer: SATAKE MultiMix Corporation
Model: HSF Reactor

Features

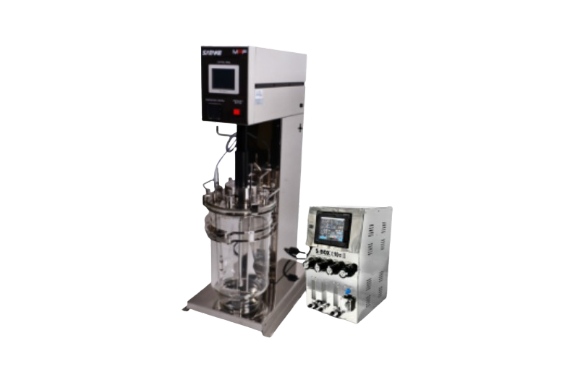

The MRF Reactor is a laboratory-scale BioReactor designed for scaling up production.
It features a simple design with excellent cleaning capabilities, along with the MR210Bio impeller for efficient mixing and homogenization.
This ensures that culture results from lab experiments are easily replicated at scale.
The reactor supports fluid surface fluctuation in fed-batch cultures, maintaining consistent mixing performance across volumes from 1.5 L to 20,000 L.
The “S-BOX × 10α II” controller allows easy adjustments to various parameters, including PI control.

Item		Specifications
Name		MRF Reactor
Model		MRF-3	MRF-8 (10 [%] Dish bottom head)	MRF-10
Temp. control device		Band heater (PID control) with over-temperature protection function (Max. 80 [℃])
Power transmission		Magnet drive (non-sealing type)
Gas supply type		Shirasu porous glass (SPG) membrane type / sintered metal type (selectable)
Performance^*1	Temp. control range	Room temperature + 5 – 20 [℃] (normally set to 37 [℃])
	Temp. accuracy	±0.3 [℃]（37 [℃]）
	Rotational speed range	5 – 200 [min^-1]
Function	Temp. setting	Touch panel input, data output DC1 – 5 [V]
Function	Speed setting	Touch panel input, data output DC0 – 10 [V]
Configuration	Power of band heater	Max. 160 [W]	Max. 480 [W]	Max. 480 [W]
	Power of motor	Max. output 100 [W]
	Mixing impeller	Super-Mix MR210Bio impeller
Culture tank	Dimensions	I.D. 140 x Depth 203 [mm]	I.D. 200 x Depth 330 [mm]	I.D. 200 x Depth 360 [mm]
Culture tank	Culture operation volume	2.4 [L]	6 [L] (10 [%] Dish bottom head)	7 [L]
Usage condition		10 – 35 [℃]
Outer dimensions		W360×D485×H905 [mm]
Weight		Approx. 30 [kg]	Approx. 34 [kg]	Approx. 34 [kg]
Power supply		AC100 [V], 50 /60 [Hz]
*1　The performance is the value under room temperature 20 [℃], power supply AC100 [V], 50 [Hz] and no load condition.
