SATAKE MultiMix

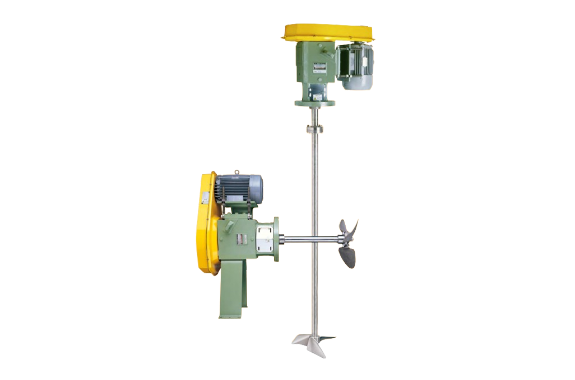

SATAKE Multi-S Mixer S3 / S4 / S5 Series Belt Reducer Type
Manufacturer: SATAKE MultiMix Corporation
Model: S3 / S4 / S5 Series
Features
- The compact mixer design enhances handling, maintenance, and inspection with a focus on user needs.
- The AF100 impeller boosts the discharge flow rate significantly.
- Shaft sealing options and replaceable gland packings are available for different liquid conditions, even in full tanks.
- The lightweight FRP resin belt cover (S3 and S4) is easy to install and remove, complying with Fire Service Law.
- Motor vibration is minimized with an increased motor base rigidity.
- The durable V belt ensures quiet operation, with excellent lifespan, oil resistance, and heat resistance.
- The shaft sealing uses an oil-less deep groove ball bearing shield type for long-lasting performance.
Standard dimensions (Top-mount type)
| Impeller speed (min-1) | Motor power (kW) | O.D | P.D | N-φZ | O.S | P.S | NS-φZS | G2 | G3 | φF | φS | φE | L | H | A | B | M | D | Estimated weight (kg) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Main body | Motor | ||||||||||||||||||||
| S3 Series | 350(4P) | 5.5 | 350 | 310 | 12-23 | □350 | □305 | 4-24 | 40 | 20 | 60 | 55 | 147 | 200 | 684 | 520 | 286 | 2,750 | 520 | 236 | 68 |
| 350(4P) | 7.5 | 350 | 310 | 12-23 | □350 | □305 | 4-24 | 40 | 20 | 60 | 55 | 147 | 200 | 684 | 520 | 286 | 2,500 | 550 | 246 | 78 | |
| 350(4P) | 11 | 350 | 310 | 12-23 | □350 | □305 | 4-24 | 40 | 20 | 60 | 55 | 147 | 200 | 684 | 520 | 286 | 2,250 | 600 | 271 | 100 | |
| 230(6P) | 3.7 | 350 | 310 | 12-23 | □350 | □305 | 4-24 | 40 | 20 | 60 | 55 | 147 | 200 | 684 | 520 | 286 | 2,800 | 550 | 239 | 68 | |
| 230(6P) | 5.5 | 350 | 310 | 12-23 | □350 | □305 | 4-24 | 40 | 20 | 60 | 55 | 147 | 200 | 684 | 520 | 286 | 2,450 | 580 | 254 | 77 | |
| 230(6P) | 7.5 | 350 | 310 | 12-23 | □350 | □305 | 4-24 | 40 | 20 | 60 | 55 | 147 | 200 | 684 | 520 | 286 | 2,200 | 600 | 282 | 100 | |
| S4 Series | 350(4P) | 15 | 445 | 400 | 16-25 | □445 | □395 | 4-26 | 46 | 22 | 75 | 70 | 177 | 200 | 856 | 719 | 379 | 2,850 | 640 | 498 | 120 |
| 350(4P) | 18.5 | 445 | 400 | 16-25 | □445 | □395 | 4-26 | 46 | 22 | 75 | 70 | 177 | 200 | 856 | 719 | 379 | 2,650 | 670 | 564 | 185 | |
| 350(4P) | 22 | 445 | 400 | 16-25 | □445 | □395 | 4-26 | 46 | 22 | 75 | 70 | 177 | 200 | 856 | 719 | 379 | 2,500 | 690 | 569 | 185 | |
| 230(6P) | 11 | 445 | 400 | 16-25 | □445 | □395 | 4-26 | 46 | 22 | 75 | 70 | 177 | 200 | 856 | 719 | 379 | 2,750 | 670 | 477 | 120 | |
| 230(6P) | 15 | 445 | 400 | 16-25 | □445 | □395 | 4-26 | 46 | 22 | 75 | 70 | 177 | 200 | 856 | 719 | 379 | 2,550 | 730 | 578 | 185 | |
| S5 Series | 350(4P) | 30 | 560 | 510 | 16-27 | □560 | □490 | 4-35 | 55 | 26 | 85 | 80 | 207 | 250 | 936 | 845 | 445 | 2,400 | 730 | 784 | 215 |
| 230(6P) | 18.5 | 560 | 510 | 16-27 | □560 | □490 | 4-35 | 55 | 26 | 85 | 80 | 207 | 250 | 936 | 845 | 445 | 2,500 | 750 | 789 | 215 | |
| 230(6P) | 22 | 560 | 510 | 16-27 | □560 | □490 | 4-35 | 55 | 26 | 85 | 80 | 207 | 250 | 936 | 845 | 445 | 2,350 | 790 | 792 | 215 | |
Standard dimensions (Side-mount type)
| Impeller speed (min-1) | Motor power (kW) | O.D | P.D | N-φZ | G1 | φF | L | H | A | B | C | J | K | D | Estimated weight (kg) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Main body | Motor | ||||||||||||||||
| S3 Series | 350(4P) | 5.5 | 350 | 310 | 12-23 | 44 | 60 | 600 | 684 | 520 | 286 | (750) | 135 | 615 | 500 | 246 | 68 |
| 350(4P) | 7.5 | 350 | 310 | 12-23 | 44 | 60 | 600 | 684 | 520 | 286 | (750) | 135 | 615 | 530 | 256 | 78 | |
| 350(4P) | 11 | 350 | 310 | 12-23 | 44 | 60 | 600 | 684 | 520 | 286 | (750) | 135 | 615 | 590 | 281 | 100 | |
| 230(6P) | 3.7 | 350 | 310 | 12-23 | 44 | 60 | 600 | 684 | 520 | 286 | (750) | 135 | 615 | 590 | 249 | 68 | |
| 230(6P) | 5.5 | 350 | 310 | 12-23 | 44 | 60 | 600 | 684 | 520 | 286 | (750) | 135 | 615 | 650 | 264 | 77 | |
| 230(6P) | 7.5 | 350 | 310 | 12-23 | 44 | 60 | 600 | 684 | 520 | 286 | (750) | 135 | 615 | 680 | 292 | 100 | |
| S4 Series | 350(4P) | 15 | 445 | 400 | 16-25 | 50 | 75 | 720 | 856 | 719 | 379 | (950) | 190 | 760 | 630 | 511 | 120 |
| 350(4P) | 18.5 | 445 | 400 | 16-25 | 50 | 75 | 720 | 856 | 719 | 379 | (950) | 190 | 760 | 650 | 577 | 185 | |
| 350(4P) | 22 | 445 | 400 | 16-25 | 50 | 75 | 720 | 856 | 719 | 379 | (950) | 190 | 760 | 680 | 582 | 185 | |
| 230(6P) | 11 | 445 | 400 | 16-25 | 50 | 75 | 720 | 856 | 719 | 379 | (950) | 190 | 760 | 740 | 490 | 120 | |
| 230(6P) | 15 | 445 | 400 | 16-25 | 50 | 75 | 720 | 856 | 719 | 379 | (950) | 190 | 760 | 790 | 591 | 185 | |
| S5 Series | 350(4P) | 30 | 560 | 510 | 16-27 | 60 | 85 | 850 | 936 | 845 | 445 | (1,100) | 240 | 870 | 710 | 806 | 215 |
| 230(6P) | 18.5 | 560 | 510 | 16-27 | 60 | 85 | 850 | 936 | 845 | 445 | (1,100) | 240 | 870 | 830 | 811 | 215 | |
| 230(6P) | 22 | 560 | 510 | 16-27 | 60 | 85 | 850 | 936 | 845 | 445 | (1,100) | 240 | 870 | 860 | 814 | 215 | |
