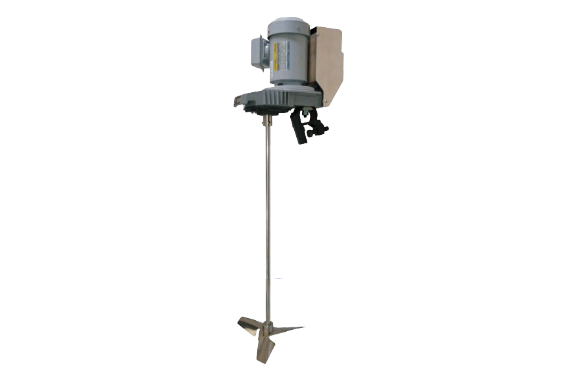

SATAKE Portable Mixer A720-□BX Medium Speed Type (Inverter With Integrated Specification)
Manufacturer: SATAKE MultiMix Corporation
Model: A720-□BX
Feature
- The A720-BX is a portable mixer that integrates the main body with an inverter.
- The impeller speed can be easily changed by using the dial, and it can flexibly respond to changes in liquid volume and viscosity.
- This mixer is compact because does not require an inverter to be installed. Since the design is based on the versatile medium-speed A720, thereby making it ideal for a wide range of applications.
- It can also be operated on a load basis, contributing to energy savings.
Standard specification
| Model | Frame number | Motor power (kW) | Number of poles (P) | Phase and voltage (V) | Frequency (Hz) | Impeller speed (min-1) | Diameter (mm) | Stage | Shaft length (mm) |
|---|---|---|---|---|---|---|---|---|---|
| A720-0.2BX | 2 | 0.2 | 4 | Three-phase 200 | 50/60 | ~360 | 270 | 1 | 1000 |
| A720-0.4BX | 3 | 0.4 | 4 | Three-phase 200 | 50/60 | ~360 | 310 | 1 | 1250 |
| A720-0.75BX | 4 | 0.75 | 4 | Three-phase 200 | 50/60 | ~360 | 350 | 1 | 1500 |

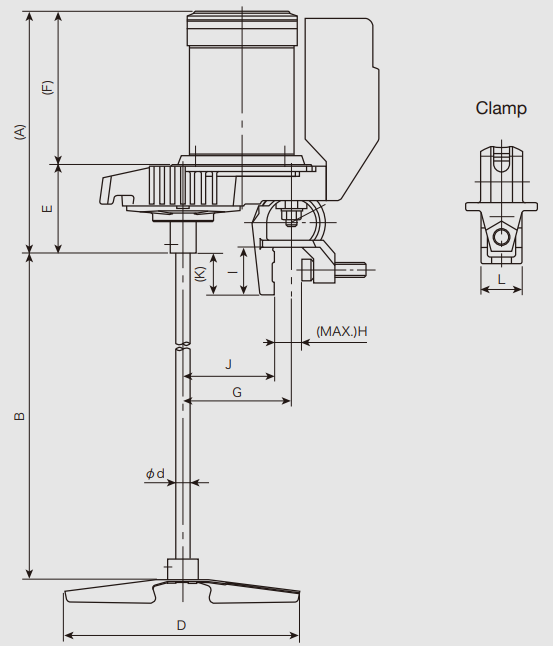

Dimensional drawing
| Model | Frame number | Motor power (kW) | (A) | B | B-MAX (Option) | φd | D | E | (F) | G | H (MAX) | I | J | (K) | L | Estimated weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A720-0.2BX | 2 | 0.2 | 309 | 950 | 1200 | 16 | 270 | 101 | 208 | 125 | 32 | 55 | 105 | 48 | 45 | 17 |
| A720-0.4BX | 3 | 0.4 | 381 | 1190 | 1440 | 20 | 310 | 152 | 229 | 140 | 39 | 65 | 120 | 28 | 52 | 23 |
| A720-0.75BX | 4 | 0.75 | 425 | 1425 | 1675 | 25 | 350 | 189 | 236 | 160 | 48 | 80 | 140 | 35 | 70 | 34 |
