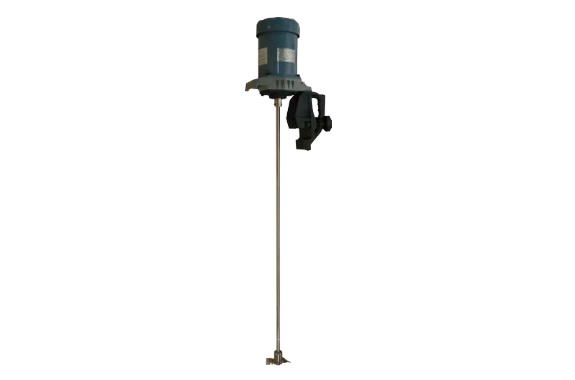

SATAKE Portable Mixer A750 High Speed Type
Manufacturer: SATAKE MultiMix Corporation
Model: A750
Feature
- This model can be directly attached to the chime of a steel drum “JIS Z1601-Old Class 1 (equivalent to 200L)”.
- High performance of K02 impeller is used.
- This impeller is specially designed to spread the impeller blades by centrifugal force as the shaft rotates.
Standard specifications
| Model | Frame number | Power (kW) | Number of poles (P) | Phase and voltage (V) | Frequency (Hz) | Revolution (min-1) | Diameter (mm) | Stage | Shaft length (mm) |
|---|---|---|---|---|---|---|---|---|---|
| A750-0.1AS | 1 | 0.1 | 4 | Single-phase 100 | 50 | 1450 | 80 | 1 | 800 |
| A750-0.1BS | 1 | 0.1 | 4 | Three-phase 200 | 60 | 1750 | 70 | 1 | 800 |
| A750-0.2AS | 2 | 0.2 | 4 | Single-phase 100 | 50 | 1450 | 90 | 1 | 850 |
| A750-0.2BS | 2 | 0.2 | 4 | Three-phase 200 | 50 | 1450 | 90 | 1 | 850 |
| A750-0.4BS | 4 | 0.4 | 4 | Three-phase 200 | 60 | 1450 | 90 | 1 | 850 |
Dimensional drawing
| Model | Frame number | Motor (kW) | (A) | B | B-MAX (Option) | φd | 50Hz | 60Hz | E | (F) | G | H (MAX) | I | J | (K) | L | Estimated weight (kg) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | Di | D | Di | ||||||||||||||||
| A750-0.1A | 1 | 0.1 | 269 | 760 | 960 | 13 | 80 | 49 | 70 | 44 | 87 | 182 | 85 | 10 | 22 | 73 | 79 | 115 | 10 |
| A750-0.1B | 1 | 0.1 | 260 | 760 | 960 | 13 | 80 | 49 | 70 | 44 | 87 | 173 | 85 | 10 | 22 | 73 | 79 | 115 | 10 |
| A750-0.2A | 2 | 0.2 | 307 | 800 | 1200 | 16 | 90 | 58 | 80 | 53 | 102 | 205 | 105 | 10 | 22 | 73 | 76 | 115 | 14 |
| A750-0.2B | 2 | 0.2 | 277 | 800 | 1200 | 16 | 90 | 58 | 80 | 53 | 102 | 175 | 105 | 10 | 22 | 73 | 76 | 115 | 14 |
| A750-0.4B | 4 | 0.4 | 357 | 800 | 1200 | 16 | 105 | 66 | 90 | 58 | 127 | 230 | 105 | 10 | 22 | 73 | 51 | 115 | 15 |
| A750-0.75B | 4 | 0.75 | 357 | 800 | 1200 | 16 | 105 | 66 | 90 | 58 | 127 | 230 | 105 | 10 | 22 | 73 | 51 | 115 | 16 |
