SATAKE MultiMix

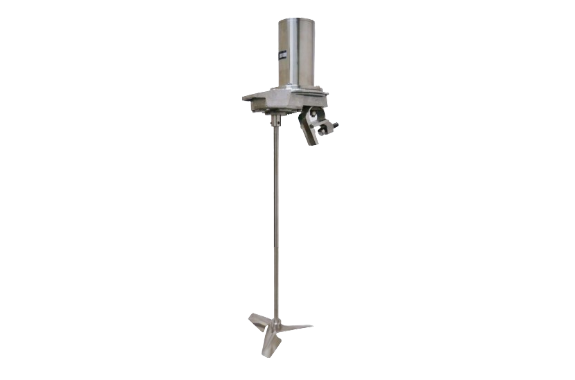

SATAKE Portable Mixer A760 Stainless Steel Model Medium Speed Type
Manufacturer: SATAKE MultiMix Corporation
Model: A760
Feature
- The main body of this mixer is made of stainless steel.
- The A760 is suitable for the fine chemicals, pharmaceuticals, and food products, as it prevents rust and coating film from mixing with the agitated material.
Standard specification
| Model | Power (kW) | Frequency (Hz) | Revolution (min-1) | Mixing capacity (ℓ) | Medium viscosity liquid (ℓ) | Estimated weight (kg) |
|---|---|---|---|---|---|---|
| A760-0.2B | 0.2 | 50 | 300 | 2000 | 700 | 20 (Including the impeller and shaft) |
| 60 | 360 | |||||
| A760-0.2K | 0.2 | – | 200~360 | 2000 | 700 | 20 (Including the impeller and shaft) |
Dimensional drawing
