SATAKE MultiMix

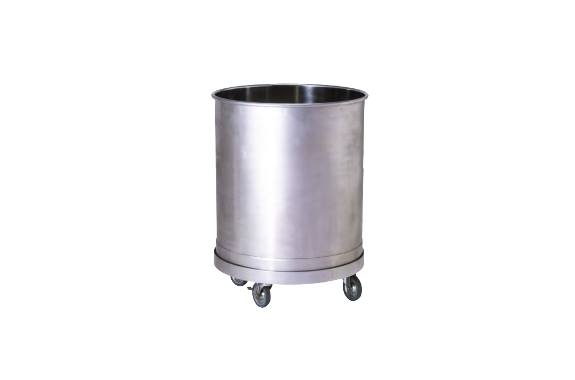

SATAKE Portable Mixer ZT Series Mixer Tanks
Manufacturer: SATAKE MultiMix Corporation
Model: ZT Series
Feature
- 9 types of tanks ranging from 20 liters to 200 liters, all buffed and polished, are available with special lids as standard.
Standard specifications
| Model | Dimension (A×B) (mm) | Thickness (t) (mm) | Maximum capacity (ℓ) |
|---|---|---|---|
| ZT-20 | 300×300 | 0.8 | 20 |
| ZT-25 | 330×330 | 0.8 | 25 |
| ZT-35 | 360×360 | 0.9 | 35 |
| ZT-45 | 390×390 | 0.9 | 45 |
| ZT-65 | 430×450 | 1.0 | 65 |
| ZT-80 | 470×470 | 1.2 | 80 |
| ZT-100 | 470×470 | 1.2 | 100 |
| ZT-150 | 565×600 | 1.2 | 150 |
| ZT-200 | 565×900 | 1.2 | 200 |
Standard dimension of tank caster
| Model | Applicable tank | Inside diameter (C) (mm) | Wheel diameter (D) (mm) | Height (E) (mm) | Depth (F) (mm) |
|---|---|---|---|---|---|
| ZC-20 | ZT-20 | 305 | 50 | 65 | 40 |
| ZC-25 | ZT-25 | 335 | 50 | 65 | 40 |
| ZC-35 | ZT-35 | 365 | 63 | 82 | 40 |
| ZC-45 | ZT-45 | 395 | 63 | 82 | 40 |
| ZC-65 | ZT-65 | 435 | 75 | 101 | 40 |
| ZC-80 | ZT-80 | 475 | 75 | 101 | 40 |
| ZC-100 | ZT-100 | 505 | 75 | 101 | 40 |
| ZC-150 | ZT-150 | 565 | 100 | 119 | 50 |
| ZC-200 | ZT-200 | 575 | 100 | 119 | 50 |
