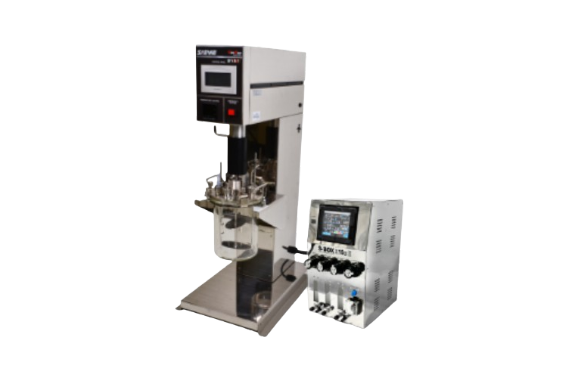

SATAKE VMF Reactor

SATAKE VMF Reactor

Manufacturer: SATAKE MultiMix Corporation
Model: VMF Reactor

Features

The VMF Reactor is a next-gen vertical reciprocating mixer for cell culture, offering excellent blending and gentle mixing with controlled shear stress.
Its enclosed structure eliminates the need for complex seals, preventing contamination and ensuring high sterility.
The dedicated “S-BOX × 10α II” controller allows easy adjustments, and customization supports up to eight machines in series.

Item		Specifications
Name		VMF Reactor
Model		VMF-05	VMF-1	VMF-3	VMF-10
Temp. control device		Band heater (PID control) with over-temperature protection function (Max. 80 [℃])
Power transmission		Linear shaft drive non-sealing type
Gas supply type		Liquid surface gas absorption (option: sintered metal type)
Performance^*1	Temp. control range	Room temperature + 5 – 20 [℃] (normally set to 37 [℃])
	Temp. accuracy	±0.3 [℃]（37 [℃]）
	Max. shaft stroke	40 [mm]
	Max. shaft speed	300 [mm/s]
Function	Temp. setting	Touch panel input, data output DC1 – 5 [V]
Function	Vertical motion setting	Touch panel input, data output DC0 – 5 [V]
Configuration	Power of band heater	Max. 60 [W]	Max. 105 [W]	Max. 160 [W]	Max. 480 [W]
	Power of motor	Max. output 800 [W]
	Mixing impellers	VM200	VM100+VM200^*2
Culture tank	Dimensions	I.D. 90 x Depth 200 [mm]	I.D. 110 x Depth 169 [mm]	I.D. 140 x Depth 203 [mm]	I.D. 200 x Depth 360 [mm]
Culture tank	Culture operation volume	0.3 [L]	1.2 [L]	2.4 [L]	7 [L]
Usage condition		10 – 35 [℃]
Outer dimensions		W360×D485×H905 [mm]
Weight		Approx. 28 [kg]	Approx. 28 [kg]	Approx. 30 [kg]	Approx. 34 [kg]
Power supply		AC100 [V], 50/60 [Hz]
*1　The performance is the value under room temperature 20 [℃], power supply AC100 [V], 50 [Hz] and no load condition.
*2　Depending on the Culture operation volume, the only mixing impeller may be only the VM200.
