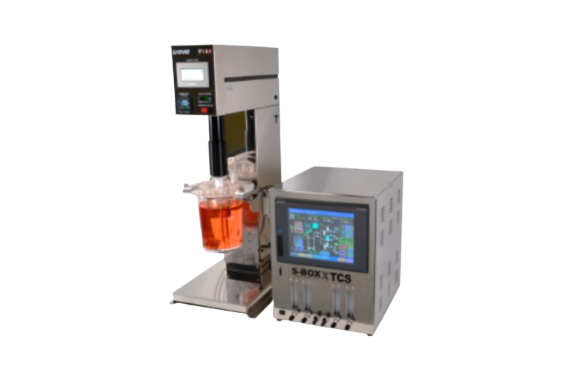

SATAKE VMF-WSUB Reactor / TCS Controller

Manufacturer: SATAKE MultiMix Corporation
Model: VMF-WSUB Reactor / TCS Controller

Features

Efficient culture medium replacement is crucial for 3D floating iPS cell cultures in regenerative medicine.
Stopping the mixing BioReactor can cause cells to settle and clump, leading to uneven aggregation and affecting differentiation efficiency.
For induced differentiation, single cells need to be discharged without sticking to surfaces.
The VMF-WSUB / TCS system ensures stable, long-term culture medium discharge and prevents clogs, meeting the needs for continuous, precise medium replacement in production settings.

Item		Specifications
Name		VMF-W Reactor
Model		VMF-05W	VMF-3W
Temp. control device		Band heater (PID control) with over-temperature protection function (Max. 60 [℃])
Power transmission		Linear shaft drive non-sealing type
Gas supply type		Liquid surface gas absorption (option : sintered metal type)
Performance^*1	Temp. control range	Room temperature + 5 – 20 [℃] (normally set to 37 [℃])
	Temp. accuracy	±0.3 [℃] (37 [℃])
	Max. shaft stroke	40 [mm]
	Max. shaft speed	300 [mm/s]
Function	Temp. setting	Touch panel input, data output DC1 – 5 [V]
Function	Vertical motion setting	Touch panel input, data output DC0 – 5 [V]
Configuration	Power of band heater	60 [W] (Max. 60 [℃])	160 [W] (Max. 60 [℃])
	Power of motor	Max. power 800 [W]
	Mixing impellers	VM200	VM100+VM200
Culture tank	Dimensions	I.D. 94/87 x Depth 110 [mm]	I.D. 159/138 x Depth 202 [mm]
Culture tank	Culture operation volume	0.25 – 0.3 [L]	1.8 – 2.5 [L]
Usage condition		10 – 35 [℃]
Outer dimensions		W360×D485×H905 [mm]
Weight		Approx. 28 [kg]	Approx. 30 [kg]
Power supply		AC100 [V], 50/60 [Hz]
*1　The performance is the value under room temperature 20 [℃], power supply AC100 [V], 50 [Hz] and no load condition.
