Seiko Time Creation Inc.

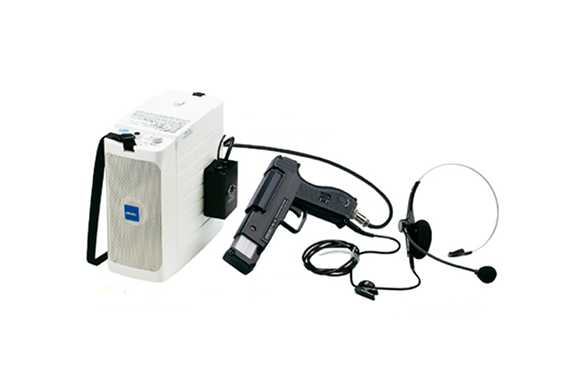

Seiko Time Creation PS-110 Electronic Starting System
Manufacturer: Seiko Time Creation Inc.
Model: PS-110
Overview
No misfire or smoke
The electronic sound and strobe light generate the start signal, completely eliminating the problems associated with conventional start pistols using gunpowder.
Loud speaker function
By using the headset microphone, starterfs voice can be amplified.
System expansion
PS-110 can be connected to additional speaker boxes or other devices as required.
Specification
Start pistol （PS-78）
| Feature | Details |
|---|---|
| Strobe | Xenon lamp |
| Power supply | LR06 “AA” alkaline dry cell × 2 pcs. (DC 3V) |
| Battery life | Approx. 1,200 times (Number of times light can be emitted continuously in 1-minute intervals.) |
| Dimensions | W210 x H40 x D145 mm |
| Material | Aluminum, black gray |
| Weight | Approx. 410 g (excluding dry cells, cord) |
Headset microphone （PS-61）
| Feature | Details |
|---|---|
| Type of microphone | Condenser microphone |
| Overall dimensions | 160 (W) x 68 (H) x 170 (D) mm |
| Weight | Approx. 45 g (including cables) |
Speaker box （PS-56）
| Feature | Details |
|---|---|
| Rated output | 6 W (max. 10 W) |
| Power supply | “AA” size dry battery, 8 pieces |
| Battery life | For alkaline dry battery: Pistol sound approx. 3,000 times of operation |
| Overall dimensions | 102 (W) x 216 (D) x 258 (H) mm |
| Weight | Approx. 1.6 kg (excluding batteries) |
