Seiko Time Creation Inc.

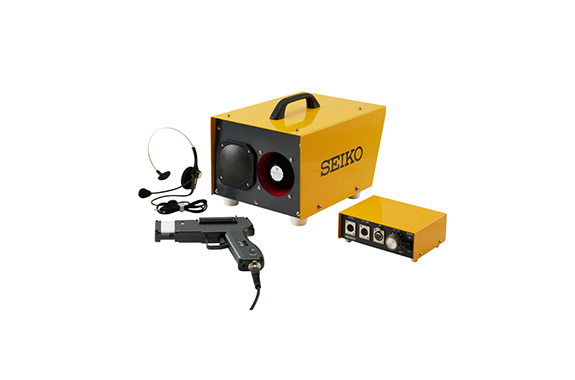

Seiko Time Creation PS-1300 Electronic Starting System
Manufacturer: Seiko Time Creation Inc.
Model: PS-1300
Overview
In accordance with FINA Rules
As electronic start sound is generated, start signal is sent to the printing timer simultaneously.
Two types of start sounds(gun fire, beep) are available.
Strobe position is top of the gun, easily viewable point.
Specification
PS-1300 main uniit
| Specification | Details |
|---|---|
| Power Supply | DC12V, 17Ah Small-sized valve regulated acid batteries |
| Overall Dimensions | W264 x H203 x D390 mm |
| Weight | Approx. 14.5 kg |
Starter box
| Specification | Details |
|---|---|
| Overall Dimensions | W183 × H62 × D150 mm |
| Weight | Approx. 1.3 kg |
Pistol
| Specification | Details |
|---|---|
| Power Supply | DC 3V (LR06 “AA” alkaline dry battery, 2 pieces) |
| Material | Aluminum |
| Overall Dimensions | W210 × H40 × D145 mm |
| Weight | Approx. 0.4 kg (excluding dry cells, cord) |
