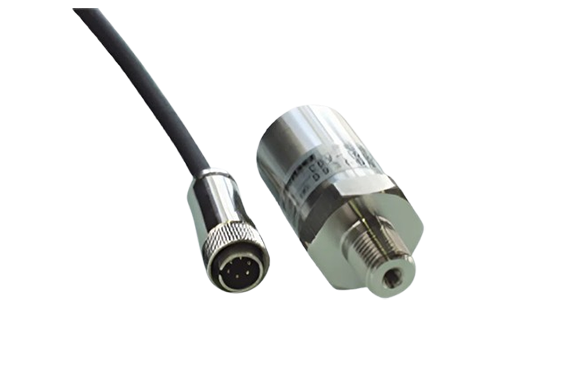

SENSEZ CB Series High-accuracy Compact Pressure Sensors
Products Made in Japan
Manufacturer :SENSEZ
Model :CB Series (CBV-050KP,CBV-100KP,CBV-300KP,CBV-600KP,CBI-100KP,CBI-300KP,CBI-600KP)
Absolute pressure sensor that is easy to handle and easy to maintain
Features
- Connector type
- Welded structure
- Connector type of the “HB series” absolute pressure sensor with a welded structure
- Easy to handle and highly maintainable
- Support of a wide range of pressure media such as gas and medicinal solution
- Capable of high-accuracy vacuum region measurement without being affected by atmospheric fluctuations
Characteristics
- Connector type of the“ HB series” absolute pressure sensor with a welded structure
- Support of a wide range of pressure media such as gas and medicinal solution
- Capable of high-accuracy vacuum region measurement without being affected by atmospheric fluctuations
Specifications
- Accuracy：± 0.5％ F.S. or less
- Overpressure：＜CBV＞200% of the rated pressure
＜CBI＞150% of the rated pressure
Use examples and track record
- Pressure control for vacuum equipment
- Pressure control for vacuum molding machines
- Pressure control for defoaming equipment
- Pressure control for vacuum filling equipment
Industries where our products are widely used
Precision equipment, semiconductors/liquid crystal, machinery, food/drug production, industrial material, etc.
| Model | Rated pressure |
| CBV-050KP | 0～50kPa abs |
| CBV-100KP | 0～100kPa abs |
| CBV-300KP | 0～300kPa abs |
| CBV-600KP | 0～600kPa abs |
| CBI-100KP | 0～100kPa abs |
| CBI-300KP | 0～300kPa abs |
| CBI-600KP | 0～600kPa abs |
| Model | CBV • CBI | |||
| -050KP | -100KP | -300KP | -600KP | |
| Rated pressure | 0～50kPa abs | 0～100kPa abs | 0～300kPa abs | 0～600kPa abs |
| Pressure type | Absolute pressure | |||
| Overpressure | CBV: 200% of the rated pressure / CBI: 150% of the rated pressure | |||
| Wetted part material | Diaphragm: SUS316L Pressure port: SUS316 | |||
| Sealing liquid | Silicone oil | |||
| Applicable media | Gas and fluid (media not damaging the wetted part material) | |||
| Power supply | 12 to 28VDC | |||
| Output | 1 to 5VDC only | CBV: 1 to 5VDC / CBI: 4 to 20mADC | ||
| Current consumption | CBV: 6mA or less | |||
| Load resistance | CBV : 1k 2 or more/CBI : 600 Ω or less (at power of 24 VDC) | |||
| Responsiveness | 5msec or less | |||
| Accuracy (linearity) | ±0.5% F.S. or less * 1 (±0.3% F.S. or less) | |||
| Temperature characteristics | ±0.05% F.S. / °C or less (0 to 60°C) | |||
| Compensated temperature range | 0 to 60°C | |||
| Operating temperature range (Measurement medium temperature) | -20 to 80°C (no freezing allowed) | |||
| Operating humidity range | -20 to 100°C (no freezing allowed) | |||
| Pressure connection port | 35 to 85% RH (no dew condensation allowed) | |||
| Cable | R1/4 (standard) R3/8 R1/2 G1/4 G3/8 | |||
| Structure | 6 vinyl (with connector): 2000mm (standard) Shield cable | |||
| Insulation resistance | IP66 | |||
| Withstand voltage | 100M 2 or more / 500VDC 500VAC, 1 minute | |||
| Vibration resistance | 98.1 m/s², 2 hours (X, Y, and Z directions) | |||
| Weight | Approx 260g | |||
| Impact of mounting orientation (port orientation changed from downward to sideways) | + 0.3% F.S | + 0.1% F.S. | _ | |
We also manufacture high-accuracy pressure sensors (accuracy: ± 0.25% F.S. or less).
Dimensions(Units:mm)
Cables / wires
| CBV | CBI | |
| Red | Power supply + | Power supply + |
| White | Output | Power supply |
| Black | Common | _ |
Model
