Manufacturer: SHIMADEN CO., LTD.

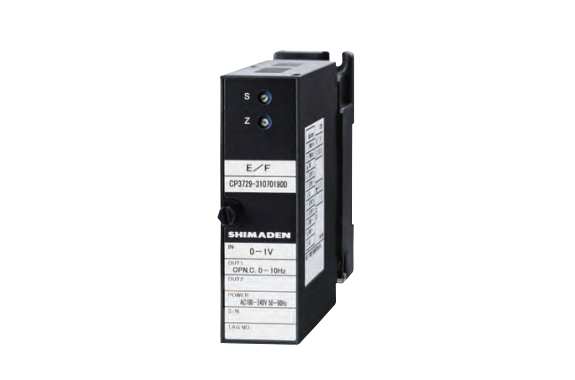

Model:  CP3729

Features

This is a DC-frequency converter that converts DC current/voltage signals into unit pulse signals and outputs them.

Specifications

Input Types: 0–1V DC, 0–5V DC, 1–5V DC, 0–10V DC, 4–20mA DC
Output Types: Open collector, PhotoMOS relay
Accuracy: ±0.1% (25°C ±5°C)
Input Resistance: ≥1MΩ
Response Speed: ≤65ms (50Hz), ≤35ms (≥500Hz)
Output Load:
Open collector: max 30V, 100mA (resistive)
PhotoMOS: max 400V AC (peak), 0.15A AC (continuous)
Power Supply: 100–240V AC ±10% 50/60Hz, 24V DC ±10%
Power Consumption: AC ≤4VA, DC ≤1.22W
Environment: -5 to 55°C, 5–90% RH (no condensation)
Dimensions: H86 × W29 × D125 mm
Weight: 120g (unit), 80g (socket)
