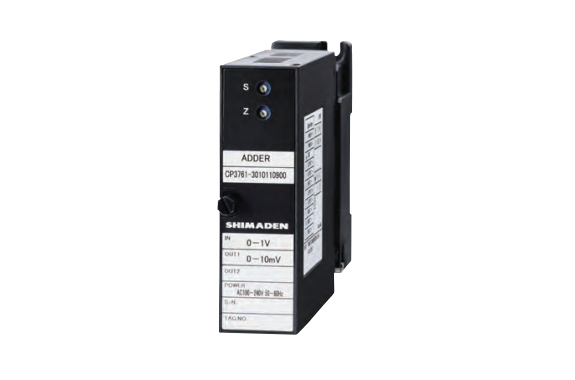

Shimaden CP3761 Adding Converter

Manufacturer: SHIMADEN CO., LTD.
Model: CP3761
Features
This is an additive converter that inputs two DC current/voltage signals and outputs a signal proportional to their sum.
Specifications
Input Types: 0–1V DC, 0–5V DC, 1–5V DC, 0–10V DC, 4–20mA DC
Output Types: 0–10mV DC, 0–1V DC, 0–5V DC, 1–5V DC, 0–10V DC, 4–20mA DC
Conversion Accuracy: ±0.1% (25°C ±5°C)
Input Resistance: ≥1MΩ
Response Time: ≤85ms
Output Load:
1V span: load current ≤2mA
10mV span: load resistance ≥10kΩ
100mV span: load resistance ≥100kΩ
Output 1 current only: load ≤750Ω
Output 1 & 2 together: Output 1 ≤550Ω, Output 2 ≤350Ω
Power Supply: 100–240V AC ±10% 50/60Hz, 24V DC ±10%
Power Consumption: AC ≤5.5VA, DC ≤1.7W
Operating Environment: -5 to 55°C, 5–90% RH (no condensation)
Dimensions: H86 × W29 × D125 mm
Weight: 120g (unit), 80g (socket)
