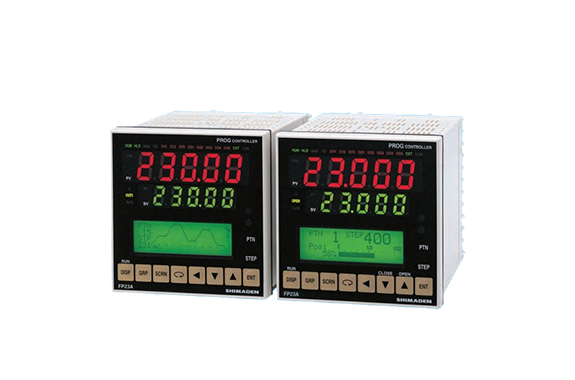

Shimaden FP23A Series Program Controller
Manufacturer: SHIMADEN CO., LTD.
Model: FP23A Series
Features
This program controller offers high-resolution 1/1000°C display (resistance thermometer 0.000 to 30.000°C) for high-precision processes. You can choose between two-input and servo output specifications. It supports up to 20 program patterns and 400 program steps. Event output: 3 points, external control input: 4 points, and external control output: 3 points (Darlington), 2 points (open collector) are standard. It features a dustproof and waterproof construction equivalent to IP66.
Specifications
| Category | Details |
|---|---|
| Input Types | |
| Thermocouple | 15 types |
| Resistance Thermometer | 2 types |
| Voltage (mV) | 7 types |
| Voltage Input (V) | 7 types |
| Current Input | Used by attaching a separately sold shunt resistor to the voltage input |
| Display Accuracy | ±0.1% FS + 1 digit |
| Reference Junction Compensation Accuracy | |
| Ambient Temperature (18-28°C) | ±1°C |
| Display Update Cycle | 0.1 seconds |
| Adjustment | Expert PID with auto-tuning function |
| Output Types | |
| Contact | 1c 240V AC 2.5A (resistive load) |
| Current | 4-20mA DC Load resistance: 600Ω or less |
| SSR Drive Voltage | 12 |
