Manufacturer: SHIMADEN CO., LTD.
Model: R-50M Series

Features

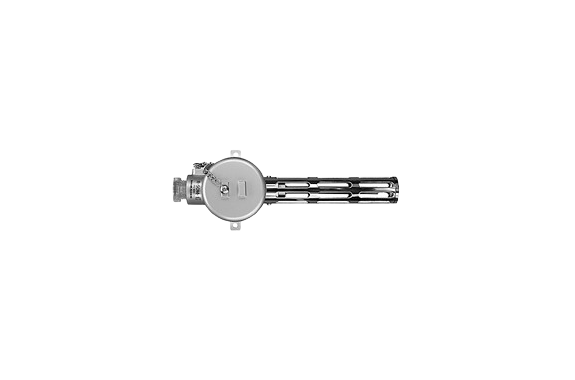

It is drip-proof and has a structure that is relatively resistant to moisture. The bottom is flat, making it suitable for wall installation. This is a terminal box-type resistance thermometer sensor with detachable lead wires. The applicable temperature range is -50 to 60°C (theoretical value, not guaranteed). A protector is included as standard to protect the protective tube from external stress.

Specification

Resistance thermometer type: Pt100
Number of elements: 1, 2
Protective tube outer diameter: φ8.0
Encasing tube length: 100 mm
Protective tube material: SUS316
Class: A, B JIS C 1604-1997
Lead wire (optional): vinyl, silicone lead 5 m, 10 m, other
protector: brass, nickel chrome plated
