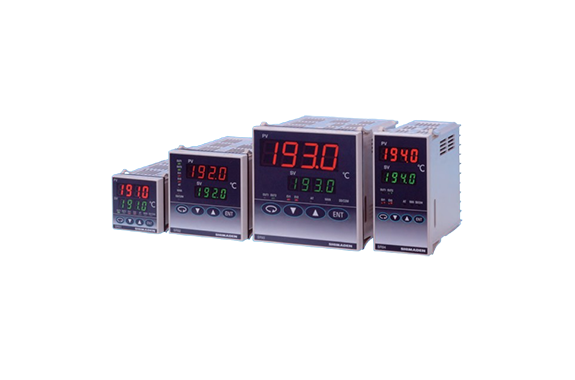

Shimaden SR90 Series Digital Dontroller
Manufacturer: SHIMADEN CO., LTD.
Model: SR90 Series
Features
This is a general-purpose controller with multiple inputs (thermocouple, resistance thermometer, mV). Heating/cooling dual output control (optional) can be selected. Event output (optional) can be selected. Heater break alarm (optional) can be selected. Analog output (optional) can be selected. Communication function (optional) can be selected. Dustproof and compliant to IP66 standards.
Specifications
| Category | Details |
|---|---|
| Input Type | |
| Thermocouple | 14 types |
| Resistance Thermometer | 2 types |
| Voltage (mV) | 6 types |
| Voltage (V) Input | 6 types |
| Current (mA) Input | 2 types |
| Display Accuracy | ±0.3%FS + 1 digit |
| Reference Junction Compensation Accuracy | |
| Ambient Temperature (18-28°C) | ±1°C |
| Display Update Cycle | 0.25 seconds |
| Adjustment | Expert PID with auto-tuning function |
| Output Type | |
| Contact | 1a 240V AC 2A (resistive load) |
| Current | 4 to 20mA DC Load resistance: 600Ω or less |
| SSR Drive Voltage | 12V ±1.5V DC 30mA or less |
| Voltage | 0 to 10V DC Load current: 2mA or less |
| Optional Features | |
| Adjustment Output 2 | Contact, current, SSR drive voltage, voltage |
| Event Output | 2 points 1a 240V AC 1A (resistive load) |
| Heater Break | 1 point 30A, 50A CT included |
| Analog Output | 1 point 0 to 10mV, 4 to 20mA, 0 to 10V |
| External Control Input | 1 point |
| Communication Function | RS-485, RS-232 (external control input and communication functions are exclusive selection) |
| General Specifications | |
| Power Supply | 100 to 240V ±10% AC 50/60Hz, 24V AC/DC (SR91) |
| Power Consumption (SR91) | 100 to 240V AC 11VA or less, 24V AC 7VA or less, 24V DC 6W or less |
| Power Consumption (SR92, SR93, SR94) | 100 to 240V AC 15VA or less |
| Operating Environment | -10 to 50°C, 90% RH or less (no condensation) |
| External Dimensions | SR91: H48 x W48 x D111mm (inside panel depth 100mm) SR92: H72 x W72 x D111mm (inside panel depth 100mm) SR93: H96 x W96 x D111mm (inside panel depth 100mm) SR94: H96 x W48 x D111mm (inside panel depth 100mm) |
| Weight | SR91: approx. 170g SR92: approx. 280g SR93: approx. 330g SR94: approx. 240g |
