Manufacturer:SHIMADEN CO., LTD.
Model: TD-11S Series

Features

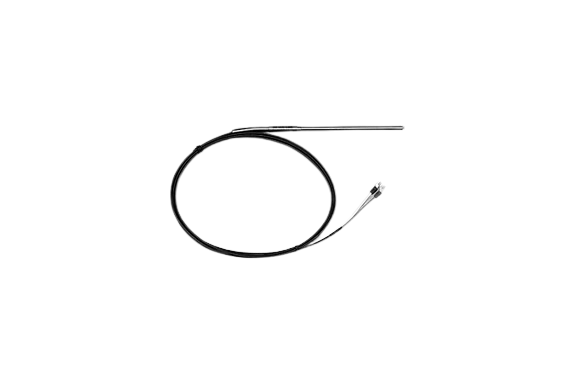

This thermocouple has a direct-attached compensating lead wire. Normal operating temperature limit is 450 to 800°C (theoretical value, not guaranteed value). We fill the protective tube with insulating material, ensuring excellent response to temperature changes. You can bend the protective tube (at least five times its diameter). We can manufacture protective tube sizes and compensating lead wire lengths to order.

Specification

Thermocouple type: K, J
Number of wires: 1
Temperature measurement junction: Ungrounded
Sheath outer diameter: φ1.6, 3.2, 4.8
Coating length: 150, 250, 350, 500 mm, Other
Sheath material: SUS316 (L)
Class: 2 (0.75 class) JIS C 1605-1995
Compensating lead wire: Glass wool 3 m, 6 m
Other fixing brackets (optional): Loose flange, compression fitting
