Simotec Electromagnetic Holder
Manufacturer: Shimonishi Giken Kogyo Co., Ltd
Product name: Electromagnetic Holder
Features
・Continuous use is possible.
・Switch can be switched on/off by electrical control.
・Can be used in a wide range of applications, from various automated devices to the handles of industrial robots.
・Can also be used for the gripping parts of industrial robots, and for suction and transport of processed materials.
specification

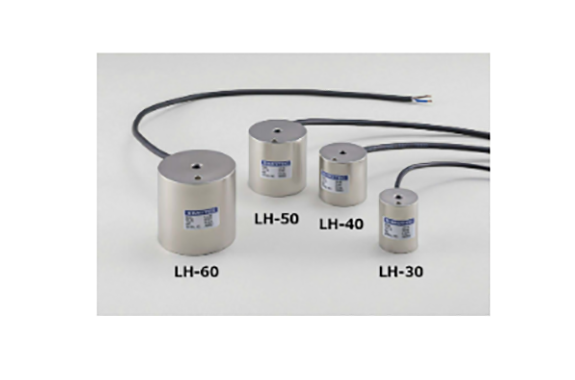

| Part Number | LH-30 | LH-40 | LH-50 | LH-60 | |
|---|---|---|---|---|---|

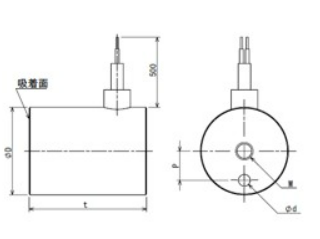

| Dimensions (mm) ΦD×t | Φ30×40 | Φ40×40 | Φ50×50 | Φ60×60 | |
| Adsorption force (N) | 176 or more | 392 or more | 578 or more | 1058 or more | |
| Mounting hole (mm) | M | M6 depth 12 | M8 depth 16 | ||
| Φd | Φ4 depth 2 | Φ4 depth 3 | Φ5 depth 4 | ||
| P | 10 | 15 | 20 | ||
| Voltage (V) | twenty four | 90 | |||
| Current (A) | 0.19 | 0.24 | 0.12 | 0.19 | |
| usage rate | 100%ED | ||||
| Mass (g) | 180 | 300 | 600 | 1100 | |
