Simotec Magnet Catch (Standard Type)
Manufacturer: Shimonishi Giken Kogyo Co., Ltd

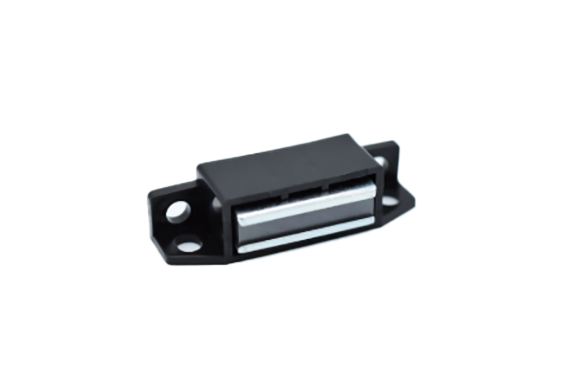

Product name: Magnet Catch (Standard Type)
Features
- -Screws can be fastened from two directions
- ・One-touch type
Purpose of use
・Fixing the front lids of information and communication devices and cabinet doors
・Holding doors of office equipment and furniture when opening and closing
Specification
RoHS compliant
| Part Number | CA0124 |  |

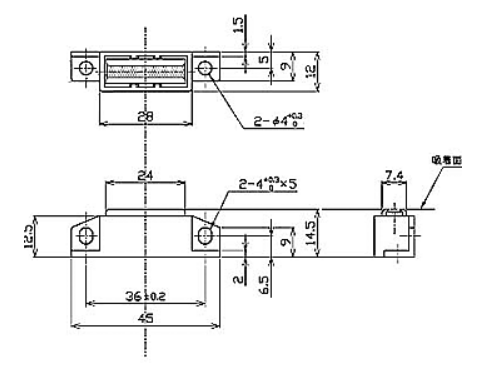

| size | 14.5mm long x 45mm wide x 12mm high (see the diagram on the right for detailed dimensions) | |
| Adsorption power | 4.5kgf±0.7kgf |
