Manufacturer: Shimonishi Giken Kogyo Co., Ltd

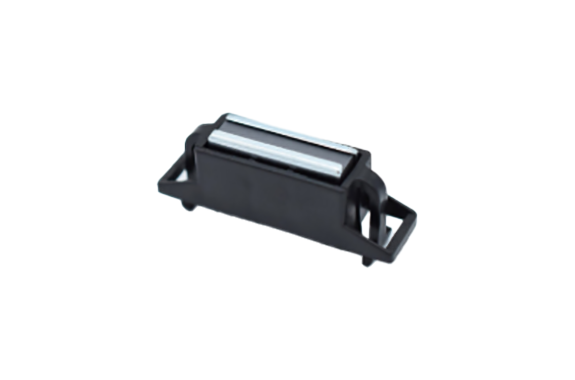

Product name: Magnetic Catch (Eco-catch type)

Features

• EcoCatch is a built-in type that does not require screws.
  After installation, it can be easily attached and detached by pinching it with your fingers.

Purpose of use

・Fixing the front lids of information and communication devices and cabinet doors
・Holding doors of office equipment and furniture when opening and closing

Specification

RoHS compliant

Part Number	CA0123

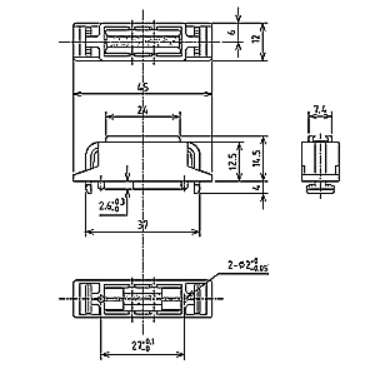

size	12mm long x 45mm wide x 14.9mm high (See the diagram on the right for detailed dimensions)
Adsorption power	4.5kgf ± 0.7kgf
