Manufacturer: Shimonishi Giken Kogyo Co., Ltd

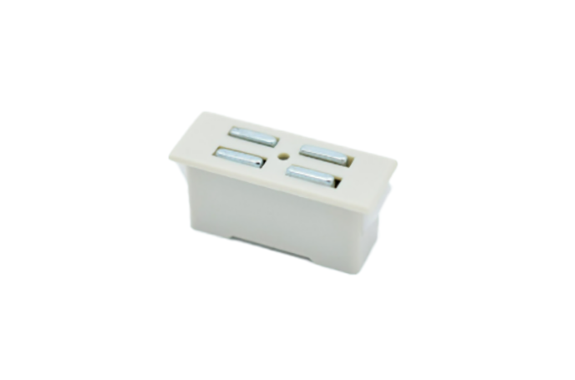

Product name: Magnetic Catch (Recycled Type)

Features

• ・One-touch embedded mounting type
• – It can be easily removed by inserting a key-shaped iron core into the hole on the adhesive surface (recycling type).

Purpose of use

・Fixing the front lids of information and communication devices and cabinet doors
・Holding doors of office equipment and furniture when opening and closing

Specification

RoHS compliant

Part Number	CA0149

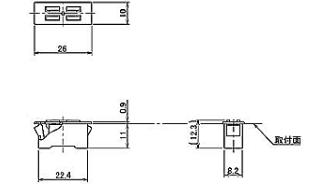

size	10 mm length x 12.3 mm width x 5.8 mm height
Adsorption power	2.6kgf ± 0.8kgf
