Manufacturer: Shimonishi Giken Kogyo Co., Ltd
Product name: Magnetic Viewer Sheet For Checking Magnetization

Features

• The magnetic viewer sheet is used to check the magnetization pattern of permanent magnets.
• The magnetic pole pattern on the viewer sheet can erase by tracing the surface with a magnet, allowing it to be used repeatedly.

[High-grade type]

• • – The high-grade type allows for more precise magnetization checks than the normal type.

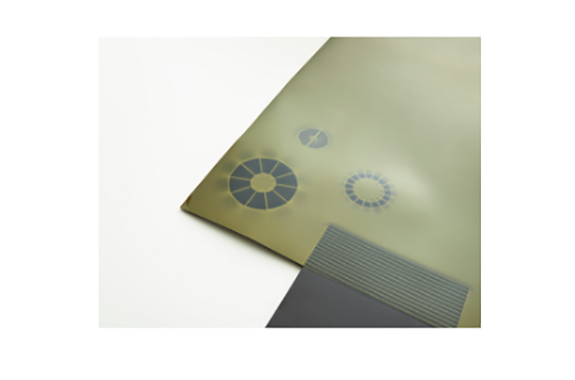

  • – The high-grade magnetic viewer sheet is made by processing magnetic microcapsule ink into a PET film-like sheet.
  • – When the viewer sheet is brought into contact with the area where magnetic lines are generated, the microcapsule ink reacts, and the distribution of these inks allows you to determine the strength of the magnetic lines and the boundaries of the magnetic poles.
  • – The boundaries of the magnetic poles with weak magnetic force are a faint grey, while the magnetic poles with strong magnetic force are a darker colour close to black, so the magnetic lines of multi-pole magnetisation (a pattern with many N and S poles) can be clearly seen.
• *The viewer sheet visualizes the magnetic pole pattern, but it cannot distinguish between north and south poles or check the magnetic field strength.

• Purpose of use

  For business use
  when you need to immediately check the strength of magnetic field lines or the boundary between magnetic poles.

  We offer a pocketable 100mm square size that is easy to carry, and 300mm/350x400mm square sizes that are convenient for checking large magnets at design and manufacturing sites.

  Specification

  [High-grade type]

  Part Number	Width x Length (mm)	surface color
  MV0007	100 x 100	Yellow Magnetic detection: Black
  MV0008	350 × 400	Yellow Magnetic detection: Black
