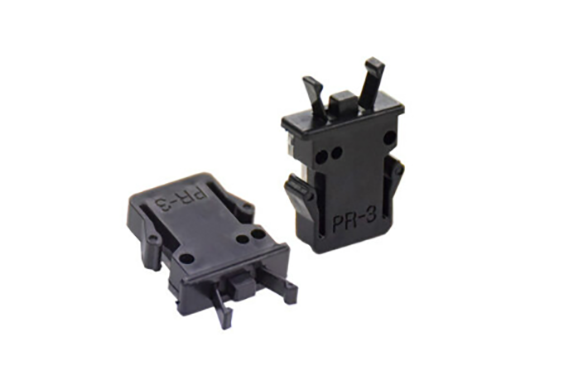

Simotec Push Latch, No Magnet Type (M)
Manufacturer: Shimonishi Giken Kogyo Co., Ltd
Product name: Push Latch, No Magnet Type (M)
Features
- ・A fastener latch that allows push-to-lock and push-to-open operation with a single touch on doors used in home appliances and audio equipment.
- One-touch operation with no handles or knobs required.
The door opens with a gentle push of your finger, and when closing, the arm firmly catches and holds the door in place. - -No magnet used
Purpose of use
・As a fastener for opening and closing doors on cabinets, measuring instruments, information and communication equipment, furniture, home appliances, etc.

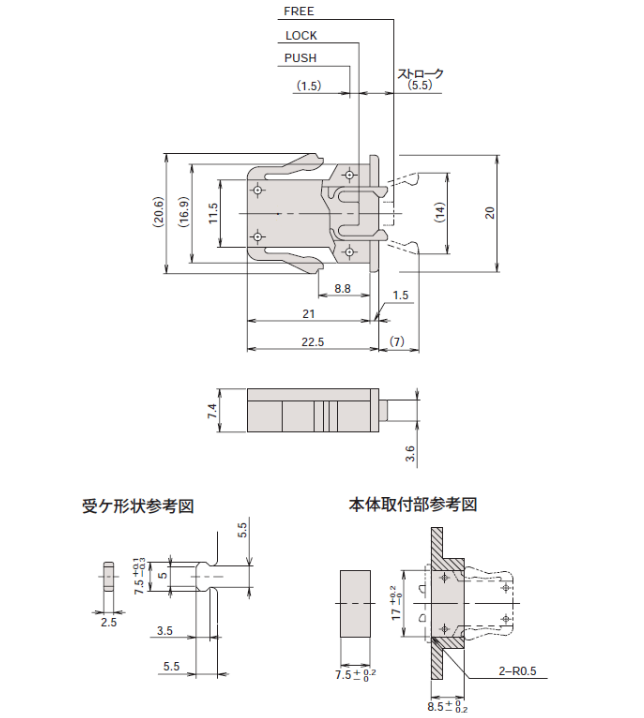

Specification
RoHS compliant
| Part Number | SS0054-A01A |
|---|---|
| size |  |
| Weight | 3.0g |
| material | ABS resin |
| durability | 30,000 operations at room temperature (locking/unlocking counts as one operation) |
|---|---|
| Breaking Load | Locked tensile load: 5.0kgf |
| Heat Resistance Test | 30,000 operations after 60℃ 90% x 72 hours treatment |
| Heat cycle test | 30,000 operations after 3 cycles of 60°C 90% x 16 hours to -20°C x 8 hours |
| Cold resistance test | 30,000 operations after -10℃ x 72 hours treatment |
| Holding force with door support | 2.0 to 2.5 kgf (21.56 to 24.5 N) |
| Slide catch pushing force | 0.45 to 0.70 kgf (4.41 to 6.86 N) |
| Slide catch release force | 0.60 to 0.80 kgf (5.88 to 7.84 N) |
| Removal force after push catch is attached | 4 kg (39.2 N) or more (*When the mounting material is ABS resin) |
Usage example

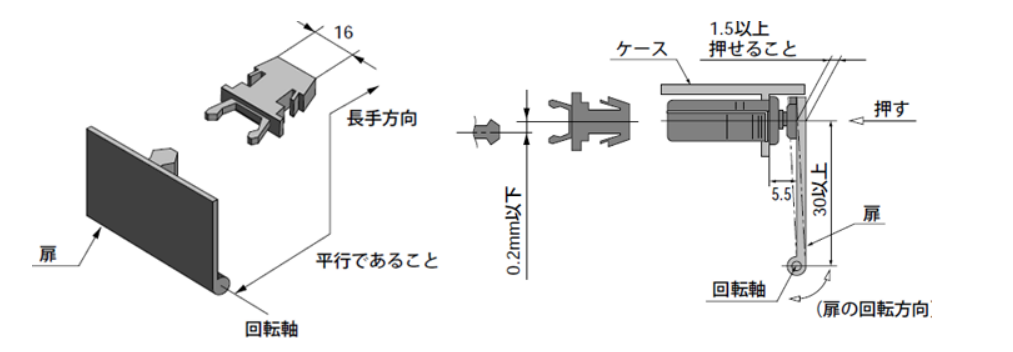

- ・Please refer to the “Example of Use” diagram above when creating the holder shape and the body mounting part. Note that the holding power will vary depending on the holder shape and thickness.
- -When using on a door, make sure the length of the main body is parallel to the center of rotation.
- – The center misalignment between the receiver and catch should be 0.2 mm or less.
- – When using on a door, the rotation radius from the center of rotation to the receiving center should be 30 mm or more.
- – The structure must ensure an unlock stroke of 1.5 mm.
- -Please install a stopper at the unlock position.
Usage notes
- – Using in high temperatures or humidity may reduce strength and holding power.
- – Do not use on doors where load is applied to the catch when locked.
- – Use a structure that does not apply the door’s own weight when locked.
- – Do not use on doors or structures that are loaded with springs, etc.
- – Do not forcefully remove the receiver or door when it is locked.
- – Do not use in a structure that corrects the door when locked.
- – Do not use multiple units on the door.
