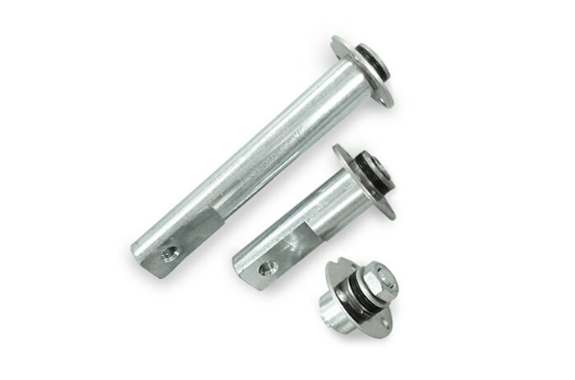

Simotec Tilt Hinge (With Simple Damper Function)
Manufacturer: Shimonishi Giken Kogyo Co., Ltd
Product name: Tilt hinge
Features
- Free stop hinge that can hold the opening and closing body at any angle
- ・As the hinge rotation speed increases, the hinge torque increases, providing a simple damping effect
(torque increase rate is approximately 20% in the manual operation range). - ・Greaseless hinge
- ・Special washers are used in place of conventional metal washers in the sliding parts with the brackets
Purpose of use
Specification
| Specification | Details |
|---|---|
| Hinge outer diameter | φ10 |
| Initial Torque | 50 to 80 N·cm ±20% |
| Durability | 5,000 times (Initial value ±25 N·cm) |
| Usage environment/storage environment | 0 to 40°C, 10 to 90% humidity. Low temp: -20°C, High temp and humidity: 60°C, 95% RH or less |
