Manufacturer: Suntest Co.,Ltd
Model: IRDS-GY

Magnetostrictive Displaiacement Transducer

Model GY Series are “Displacement Transducers” employing magnetostrictive phenomena, especially the Wiedemann effect. An ultra-sonic wave is generated by a moving magnet operating near a magnetostrictive wave guide on which the sonic wave propagates up to the head of the transducer.
The propagation time is precisely measured by state of the art technology and then the absolute displacement transducer is operational.

[ Principle ]

The figure shows the fundamental principle of operation.
When a current pulse like A is given to the wave guide, it generates a circumferential magnetic field on the wave guide, then placement of the movable magnet (polarized axially) as shown, only the axial magnetic field of the magnet affecting the wave guide produces a resultant field as indicated by the dotted line.
The vector combination of these two fields produces torsional strain, a phenomenon known as the Wiedemann Effect.
It is a form of vibration and propagates along the wave guide in the form of a transverse ultra-sonic wave.
The GY series displacement transducers detect the propagation time of the ultra-sonic wave.

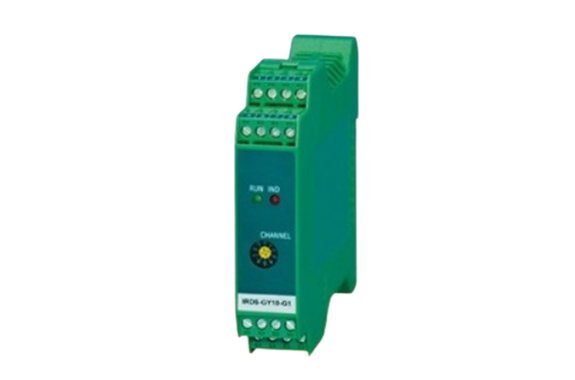

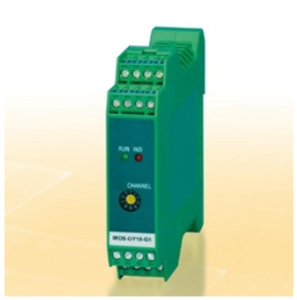

IRDS-GY Controller

This module is GY sensor conditioning module for IRDseries. 1 axis and 2 axes types are available.
The digital position data can be transferred to various fieldbus network (CC-Link, CC-Link IE Field, PROFIBUS, EtherNet/IP, Ether, CAT Ethernet (Modbus/TCP)) by connecting IRDM (master module).

Specifications

Model No.

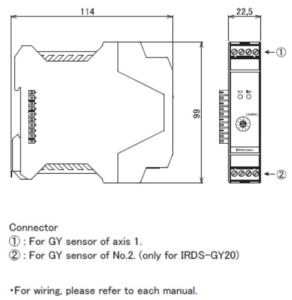

Dimensions

Dimensions
