Taimeikinzokukougyou Inc.

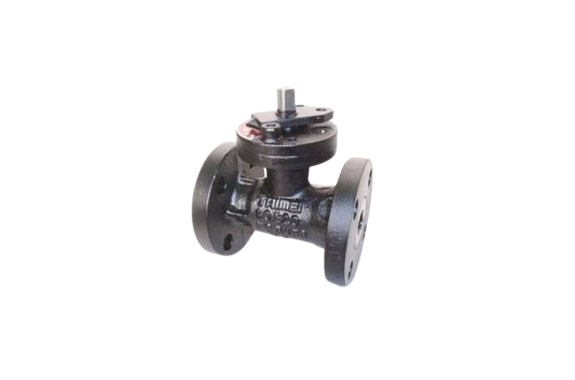

Taimeikinzokukougyou BF45L-B Ball Valve For Aboveground Piping
Manufacturer: Taimeikinzokukougyou Inc.
Model: BF45L-B
Features
Long-life performance that requires no maintenance for a long period of time
Seal structure that maintains reliable airtightness
Compact design thanks to the integrated body
Specification
| Product name | Caliber | Between surfaces [mm] | Overall height (mm) | Mass [kg] |
Mini Ball Valve (flange type) | 20A | 120 | 99 | 3.7 |
| 25A | 120 | 102 | 4.8 | |
Screw-in type Ball valve | 20A | 78 | 74 | 0.8 |
| 25A | 90 | 102 | 2.1 | |
| 50A | 150 | 113 | 4.4 | |
| 80A | 180 | 167 | 12.6 |
