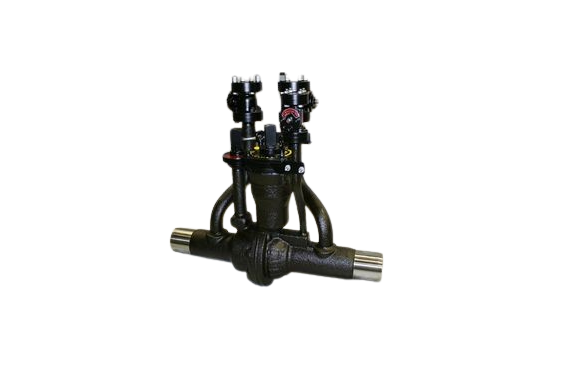

Taimeikinzokukougyou BFSCW/UG Conduction Type And Insulation Type Direct Buried Type Gas Ball Valve
Manufacturer: Taimeikinzokukougyou Inc.
Model: BFSCW/UG
Features
A flange-type model with a welded cast steel body .
The corrosion protection layer employs highly reliable urethane resin
All models feature an insulation type that cuts off current from the primary side to the secondary side.
Specification
| Soil quilt 1.2m | |||
| Caliber | Surface area (mm) | Overall height [mm] | Mass (kg) |
| 100A | 1060 | 1007 | 210 |
| 150A | 1090 | 1052 | 280 |
| 200A | 1090 | 1089 | 330 |
| 300A | 1280 | 1150 | 680 |
| Soil quilt 0.9m | |||
| caliber | Surface area (mm) | Overall height [mm] | Mass (kg) |
| 100A | 1060 | 547 | 186 |
| 150A | 1090 | 592 | 240 |
| 200A | 1090 | 629 | 300 |
| 300A | 1280 | 750 | 640 |
