Taimeikinzokukougyou Inc.
Taimeikinzokukougyou Insulating Spacer
Manufacturer: Taimeikinzokukougyou Inc.
Features
Insulating material that can be attached between flange joints of above-ground piping
Insulating lining applied to the entire core for reliable insulation performance
Specification

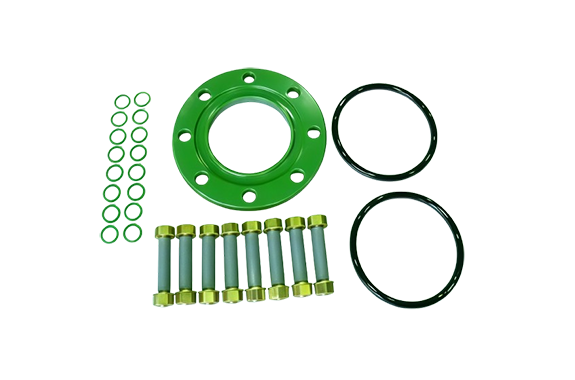

Name of included parts |
Insulating spacer |
Insulation bolt |
Insulating washer |
| Flat washer |
| Hexagon nut |
| O-ring |
Caliber | Spacer body | Insulation bolt | Insulating spacer | |
| Outer diameter x thickness | size | Number | Mass [kg] | |
| 20A | 103×11 | M16 | 4 | 0.5 |
| 25A | 128×13 | M16 | 4 | 0.9 |
| 40A | 143×13 | M16 | 4 | 1.1 |
| 50A | 158×13 | M16 | 4 | 2 |
| 80A | 189×16 | M16 | 8 | 4 |
| 100A | 214×16 | M16 | 8 | 5 |
| 150A | 284×19.4 | M20 | 8 | 9 |
| 200A | 336×19.4 | M20 | 12 | 12 |
| 300A | 451×22.8 | M24 | 16 | twenty one |
| 400A | 570×25.2 | M24 | 16 | 34 |
