Takeda Machinery Gusset Borer GB-800D Flat Plate Drilling Machine

Product made in Japan
Manufacturer: Takeda Machinery
Model: GB-800D

Simple and Speedy Drilling on Complex and Irregularly Deformed Plates!

FEATURES

Drilling and Positioning Achieved Simply by Aligning Marks on the Template

Cumbersome drilling position settings can be simple and easy by using a separate teaching table. Place a template on the table and input data by teaching.

イメージ

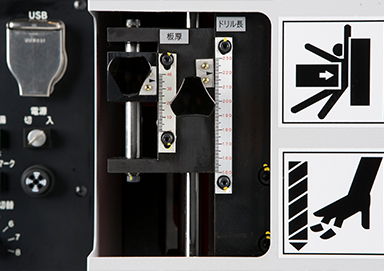

Simple Stroke Adjustment Using Scales for Drill Dog Adjustment Function

Adjustments required after a drill change or workpiece thickness change can be made simply by setting a drill length or workpiece thickness on the scale.

イメージ

Stationary Drill Unit Ensures Highly Rigid Drilling even when Sheets are Stacked

To ensure stable drilling, the stationary drill axis and the work support device reduce wear and tear or breakage of the drill that may occur during heavy cutting. In addition, the 8-speed spindle inverter offers spindle speed settings as desired.

イメージ

SPECIFICATIONS

Capacity

Drilling diameter (mm) φ14.5 to φ28
Thickness (mm) 36 or less (sheet stacking possible)

Workpiece size

(mm) 400×800
