- Takeda Machinery UWF-150IIIS/W Shaped Steel Working Machine Full Automatic Unit Worker
Japan, Takeda Machinery
Takeda Machinery UWF-150IIIS/W Shaped Steel Working Machine Full Automatic Unit Worker
Product made in Japan
Manufacturer : Takeda Machinery
Model : UWF-150IIIS/W
The Four Punch Type
Enables Punching Holes
in Two Sizes on One Side
within One Process!
FEATURES
Various Kinds of Shaped Steel Bars Can Be Handled.
Punching and cutting can be executed on various kinds of shaped steel bars, such as C-purlins, angle bars, C channels or flat bars. Wide coverage of steel bars helps to minimize the required space in your factory.
*A dedicated device (option) is required for flat bars.
TAKEDA’s Unique Unit Dies
A diverse lineup of cutting and punching dies can meet your needs for metalworking applications appropriate to the size and thickness. Two types of cutting dies are available: Single-cut dies for thin steel bars and double-cut dies for thick steel bars. Angle bars up to t12 mm can be handled

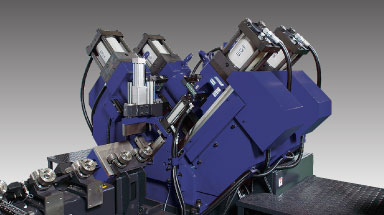

Four Punch Type for Punching Holes in Two Sizes
The four-punch type offers the selection of punching dies (four punching dies, UWF-150IIIW) for punching holes in two sizes each on the right and left sides. Two-size punching can be executed in a single pass, which eliminates the trouble of die change
SPECIFICATONS
Capacity and Workpiece Size
Punch (mm) | φ5×3t to φ25×12t | |
---|---|---|
A cutting (single-cut) (mm) | Angle bars | L30×30×3 to L100×100×7 |
Flat bars | 32×3t to 100×9 | |
C channels | [75×40×5×7 to [125×65×6×8 | |
C-purlins | C60×30×10×2.3 (1.6) to C150×75×25×4.5 ~ 3.2 | |
A cutting (double-cut) (mm) | Angle bars | L40×40×3〜L150×150×12 |
Flat bars | 32×3〜150×12 | |
Automatic operation possible steel bar length (m) | 12.1〜0.55 |
