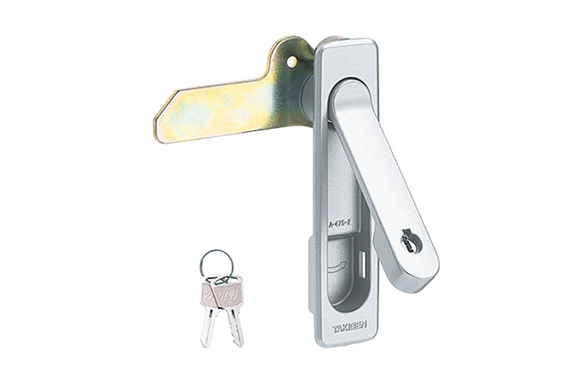

Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: A-475

Installation is compatible with the stainless steel flat handle A-1260.
Can be used on both sides (left and right can be switched by flipping the stopper plate).

Specification

Material: Zinc alloy (ZDC)
Finish: Satellite chrome plating (MZCr)
Accessories: 2 keys, screw set, special stopper plate

Applications

Distribution board/control board

Remarks

The plate thickness can be increased by changing the mounting screws. A-475-A-1: 3.2mm (M5 x 12SW), A-475-A-2/A-3: 2.3mm (M4 x 10SW)
The lock on this product is operated using the tip of the key.
We recommend applying a “locking agent” to the screws used to install the stopper plate on this product to prevent them from loosening.
Please note that turning the key more than necessary may damage the lock and key tip.
