Takigen

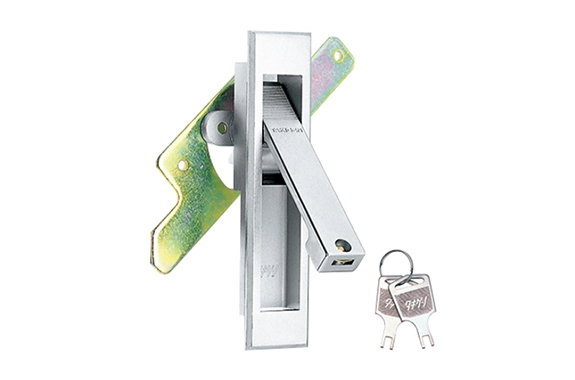

Takigen A-910 Flat Handle Series

Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: A-910
Can be used on both the left and right side (you can switch between left and right by flipping the clasp over).
Specification
Material: Zinc alloy (ZDC)
Finish: Matte chrome plating (MZCr)
Key number: 030
Accessories: 2 keys, screw set, special stopper plate
Applications
Remarks
For long-term use, periodically apply high-performance lubricant C-985 (page 1438) to the sliding parts.
A-910-2 can be used with plate thicknesses up to 3 mm by changing the mounting screw to (M4 x 8SW).
Keyless versions are also available.
We recommend applying a “loosening prevention agent” to the screws used to mount the stopper plate of this product to prevent them from loosening.
Please note that turning the key more than necessary may damage the lock and key tip.
