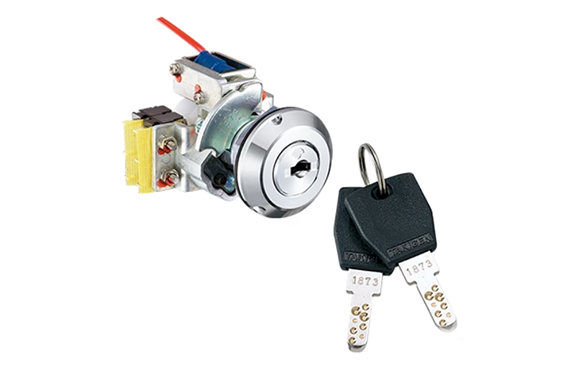

Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: S-487

● The detent effect allows for reliable key operation.
● Compact type key switch with solenoid
● The solenoid controls the rotation of the key.
The lock is C-187 type and can be equipped with a master.
● The switch part uses a product equivalent to JIS C4505S type.

Specification

●Material: Body/Free-cutting brass bar (C3602BD),

zinc alloy (ZDC)

, key/Nickel silver plate (C7541P)

●Surface finish: Body/Chrome plating (MBCr)

, zinc plating chromate treatment (MZZn-C)

●Accessories: 2 keys

●Product weight: Body/117g, key/16g

Rating

: ●DC24V, 50mA continuous rating

●Ambient operating temperature: -5 to +40°C (non-freezing)

●Ambient operating humidity: 85% RH or less (non-condensing)

Purpose

●Multi-story parking lots, various safety devices, power supply devices

Remarks

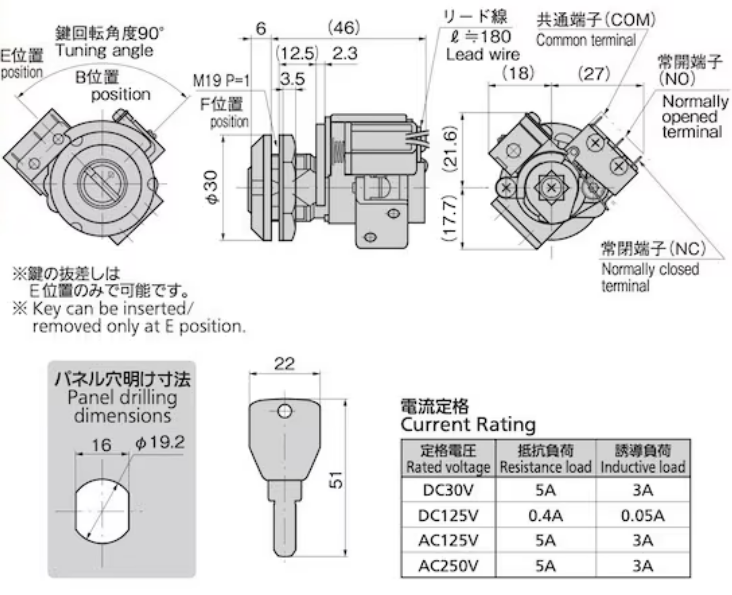

By turning off the power, the key will be locked when in the F position. (See the table on the left for the lock position.)

Please consult us for key insertion/removal positions and lock positions other than those listed in the contact configuration table below.

We can also manufacture different keys.

The solenoid has no polarity (+/-).
