Japan, Tanaka Scale

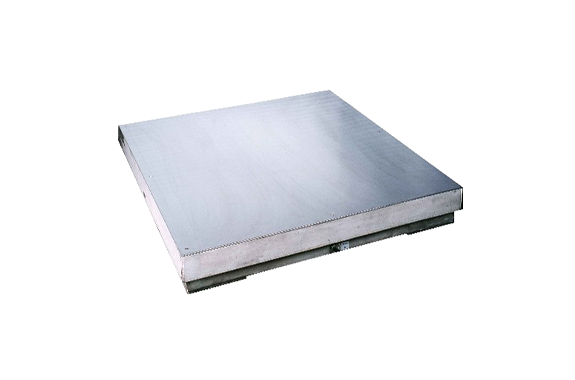

Tanaka Scale TT-SUS Type
Made in Japan
Manufacturer: Tanaka Scale
High specifications and high added-value model with rich functions as well as accuracy.
Features:
- Scales of various sizes and maximum capacity are available; SS material and stainless steel material types are also available.
- For TT-SUS series, both the body and load cell are made of stainless steel, and it is widely used in food processing, fishery processing, chemicals and other industries owing to excellent water and corrosion resistance.
- Roller conveyors and moving casters are also available as options for the body.
- It is also possible to connect with other indicators.
Specification:
| Model | Capacity of Scale | Scale Interval | Platform Dimension | Height (mm) | ||||||
| 1000 x1000 | 1200 x1200 | 1500 x1500 | 1500 x1800 | 1800 x1800 | 2000 x2000 | 2000 x3000 | ||||
| TT-300 (SUS) | 300 kg | 100g | O | O | O | 145* | ||||
| TT-600 (SUS) | 600 kg | 200g | O | O | O | 145* | ||||
| TT-1 (SUS) | 1T | 500g | O | O | O | O | 145* | |||
| TT-1.5 (SUS) | 1.5T | 500g | O | O | O | O | O | 145* | ||
| TT-2 (SUS) | 2T | 1kg | O | O | O | O | O | O | 145 | |
| TT-3 (SUS) | 3T | 1kg | O | O | O | O | O | O | 170 | |
| TT-5 (SUS) | 5T | 2kg | O | O | O | 230 | ||||
Material: TT-*Iron,TT-*SUS Stainless-steel
※ For 1200×1200 or less of TT-400SUS～1.5SUS 130mm in high.
Options:
External Form:
