Japan, TERAOKA SEISAKUSHO
TERAOKA SEISAKUSHO 7042 0.03 Transparent Double-coated adhesive film tape
Product Made in Japan
Manufacturer: TERAOKA SEISAKUSHO

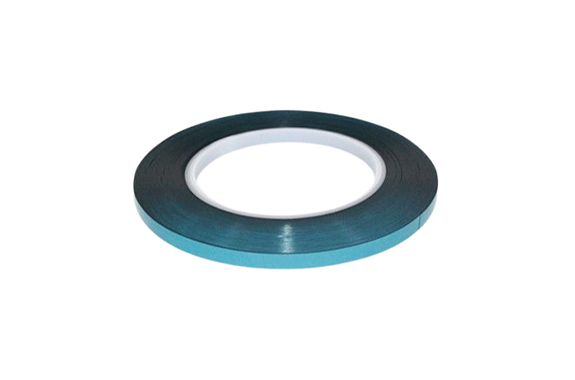

Model: 7042 0.03 Transparent
The No. 7042 series is a film double-sided tape with strong repulsion-preventing properties. Transparent with various thicknesses available.
Structure of 7042 0.03
Features
- Good for repulsion resistance
- Plastic core
- With a film release liner
Uses
- For fixing LCD backlight parts, reflection film diffusion film, etc.
- Fixing parts around LED and FPC required repulsion resistance.
|
Overall thickness (㎜)
|
0.03
|
|---|---|
|
Standard color
|
Transparent
|
|
Standard length (m)
|
50
|
|
Peel adhesion (N (gf) /W25㎜)
|
13.8(1400)
|
|
Standards met
|
─
|
The above data are typical examples measured using JIS or our corporate testing method.
RoHs2 directive 10substances are not contained.
