Manufacturer: THING TECH CO., LTD.
Model: BCS Series

AIR BALANCER

Simple! Light! Maintenance-Free!

An Air Balancer is a wire-winding balancer that operates solely on air pressure. It can lift and transport objects from 25 kg to 318 kg using only the force of the air.
Because it is made specifically as a balancer, it has low sliding resistance and is ideal for working while holding the workpiece by hand. It is also inexpensive, helping to save on capital investment costs.

Used in These Applications

• Loading assistance device for assembly plants
• Loading and unloading at logistics centers, etc.
• Weight assistance for heavy parts in parts factories, etc.
• Air Hoist

Aluminum Rail & Air Balancer	Air Balancer & Cardboard Clamp	Roll Material Transfer

Balance Control

Knight Air Balancers offer various usage methods through the selection of control components.

1. Single Balance, which allows operation for a single load at 0G.
2. Dual Balance, which allows operation at 0G by switching between 2 types of loads using a changeover button.
3. Control Modules that allow operation by pressing Up/Down buttons like an air hoist, or by moving the handle up and down to lift or lower the load.
4. Auto Balance Type, which automatically detects and balances objects of different weights or when the load changes.

※Air control components should be used in conjunction with the Air Balancer.
Furthermore, air control components can be sold separately. If the usage method of the balancer changes, replacing only the air control components can lead to cost reduction.

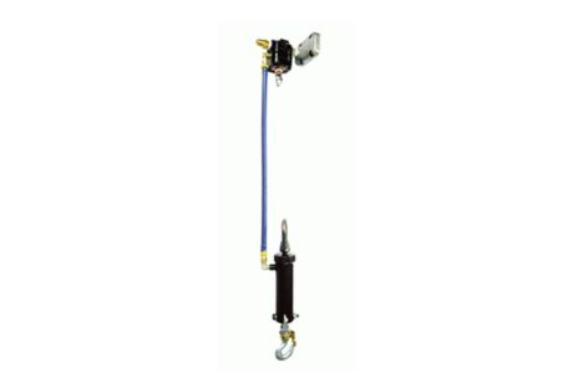

Single Balancer

High-Relieving Single Balance Control

BCS-2090 (For 113 kg and below)
BCS-2322 (For 113 kg and below)

Sets a fixed amount to zero balance. BCS2018
※Balance load up to 60 kg
