Manufacturer: THING TECH CO., LTD.
Model: MRES Series

Rail System

Lightweight Rails You Can Use with Confidence

Knight’s rail system offers both aluminum rails and steel rails.
Aluminum rails are lightweight and extruded, making operating loads lighter — this is their key advantage.
Steel rails feature high load capacity despite their compact size.
Both systems include excellent fall-prevention measures, providing safe and reliable lightweight rails for users.

Applications

• Transporting parts and products
• Rails for mounting auxiliary equipment
• Care-support rails
• Guides for lifting devices

Rail System Installation Examples	Rail System Installation Examples	Rail System Installation Examples	Door-off Device

Aluminum Rails

A rail system is a surface-transport system composed of X- and Y-axis movement.
In particular, aluminum rails are lightweight, offer excellent travel performance, do not corrode, and—thanks to precision extrusion—provide highly accurate operability.
Installation is also simple: all components are constructed using dedicated brackets, eliminating the need to drill holes, cut, or weld the rails.

By combining the rail system with an air balancer, 3-dimensional transport of heavy objects becomes possible.

We offer both aluminum rails and steel rails to suit various environments and purposes.

Main Applications

• For transporting parts and products
• As rails for auxiliary mounted equipment
• As care-support rails
• As guides for lifting devices

Both aluminum and steel rails are equipped with fall-prevention pins, ensuring safety even if a trolley were to fail.
The hangers and end trucks use through-rail bolts (patented), which significantly reduce the risk of falling.
Trolleys feature an anti-kick-up mechanism (prevents lifting), eliminating rattling during transport.
Trolleys are also equipped with side rollers, preventing horizontal sway.
Telescopes and rails can be used vertically as well.
The tool rail is ergonomically designed to minimize the force required to move loads horizontally.
Smooth operation allows heavy objects to be transported with much less effort.

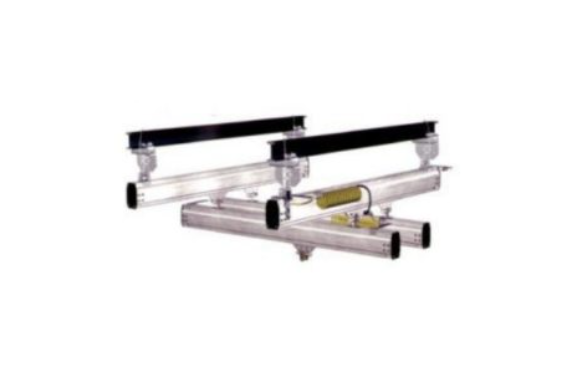

Telescoping System (Aluminum)

Knight’s aluminum rails and steel rails feature a unique telescoping bridge system that allows full overhang.
For details regarding overhang capacity and load rating, please contact us.
