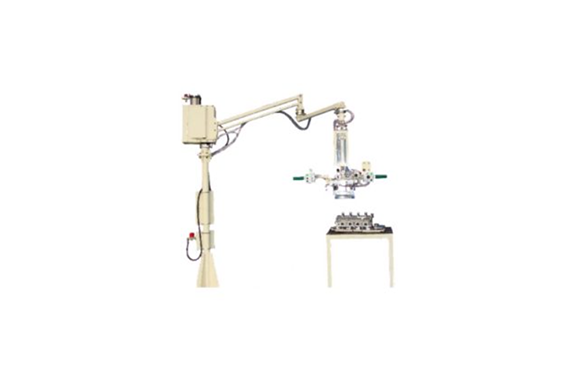

Thing Tech T-Arm Standard Type Air Balancer

Manufacturer: THING TECH CO., LTD.
Model: T-Arm

Arm

An introduction to our Arm product group, starting with the user-friendly T-Arm.
These are extremely useful pieces of equipment, effective in loading assistance and various operational scenarios.

Used in These Applications

Move products while lifting them.
Rotate and balance adjust products, such as between assembly lines.
Lift products easily.


Slider Ace 80H	Arm Installation Image	350 kg Electric Arm	Seat Hook/Catch

T-Arm

“User-friendliness” is the development theme of the T-Arm.

The T-Arm comes standard with auto-balance. Even if the product weight changes, no varied settings are required. To ensure customers can use the product with “peace of mind,” all T-Arm models have been newly designed. As a result, the tensile and compressive strength is 1.8 times that of conventional models.

(Thorough Safety Design)

Rigidity has been enhanced through the revision of internal structure and materials.
Reliability of each component has been improved through thorough management of welding.
Strength in each section has been increased by making significant changes to the components used.

(Knight Mini Arm)

To ensure customers can use the product with “peace of mind,” all T-Arm models have been newly designed. As a result, the tensile and compressive strength is 1.8 times that of conventional models. (Note: This section seems to contain repeated marketing text.)

(T-Arm Auto Balance Arm)

(Lightweight T-Arm)

In recent years, modularization has advanced in automobile, two-wheeler, and parts factories, leading to increased component weight. Therefore, by reducing the equipment weight and combining it with our Knight Rail System, this arm is designed to allow for light movement not only vertically but also in the X and Y directions. The balancing method can also be combined with our unique auto-balance system. We also design and manufacture the attachment section. Please inquire for details. Primarily, tightening tools can be attached to the arm tip to perform tightening work from above, below, or the side.

(Knight Torque Arm)

The Knight Torque Arm is used by attaching a pneumatic or electric tightening tool to its tip. It prevents wrist and arm fatigue by counteracting the weight of the tool and preventing kickback during tightening.

(Electric T-Arm)

In addition to the conventional air-powered type, we have developed the Electric T-Arm series. The load capacity is consistent with the air type, ranging from 40 kg to 650 kg. Operation can be selected between lever lifting/lowering type and step operation.

Standard Type

The T-Arm can be provided with various applications tailored to the customer’s work environment.

Processes requiring overhang
Locations where overhead suspension installation is not possible
When the work location needs to be changed occasionally

The “T-Arm” can solve these kinds of problems.

In the standard specifications, the end attachment is a hook. Fixtures such as the self-supporting type or movable type are optional.

Furthermore, the T-Arm comes standard with the auto-balance function. Even if the product weight changes, no varied settings are required.
Since it is air-controlled and does not use electric control, maintenance is hassle-free.

(Thorough Safety Design)

Rigidity has been enhanced through the revision of internal structure and materials.
Reliability of each component has been improved through thorough management of welding.
Strength in each section has been increased by making significant changes to the components used.

※1. The Standard Type and Lightweight Type come standard with the 1PB Auto-Balance system.
※2. The load capacity of the T-Arm Standard Type is at 0.55 MPa. The Lightweight Type is at 0.7 MPa.
※3. The lifting material for the Slider Ace is a nylon rope.

※For CAD data for T-Arm Type 350 and above, please inquire.

Drawing Data

Part Number	Type	Specification / Details
T-Arm Type 40	Standard Air Drive	Load Capacity: 40 kg (0.5 MPa); Working Radius: 2400 mm (320°); Lifting Stroke: 1480 mm
T-Arm Type 60	Standard	Load Capacity: 60 kg (0.5 MPa); Working Radius: 2450 mm (320°); Lifting Stroke: 1480 mm
T-Arm Type 120	Standard	Load Capacity: 120 kg (0.5 MPa); Working Radius: 2450 mm (320°); Lifting Stroke: 1480 mm
T-Arm Type 150	Standard	Load Capacity: 150 kg (0.5 MPa); Working Radius: 2450 mm (320°); Lifting Stroke: 1480 mm
T-Arm Type 200	Standard	Load Capacity: 200 kg (0.5 MPa); Working Radius: 2450 mm (320°); Lifting Stroke: 1500 mm
T-Arm Type 350	Built-to-Order	Load Capacity: 350 kg (0.5 MPa); Working Radius: 2700 mm (320°); Lifting Stroke: 1500 mm
T-Arm Type 450	Built-to-Order	Load Capacity: 450 kg (0.5 MPa); Working Radius: 2500 mm (320°); Lifting Stroke: 1500 mm
T-Arm 150 Servo	Built-to-Order	Load Capacity: 150 kg; Operation switches to a pre-determined height via step motion; Can also be operated with a lifting lever; Balance setting is not required.
T-Arm Type 150BS	Built-to-Order	Load Capacity: 150 kg
T-Arm Type 150BW	Built-to-Order	Load Capacity: 150 kg
T-Arm Type 200BS	Built-to-Order	Load Capacity: 200 kg
T-Arm Type 150BW	Built-to-Order	Load Capacity: 200 kg
T-Arm Type 300BS	Built-to-Order	Load Capacity: 300 kg
T-Arm Type 300BW	Built-to-Order	Load Capacity: 300 kg
T-Arm Type 500B	Built-to-Order	Load Capacity: 500 kg
T-Arm Type 750B	Built-to-Order	Load Capacity: 750 kg
T-Arm Type 1000B	Built-to-Order	Load Capacity: 1000 kg
