Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: T-105Be

• High-precision large constant-temperature water bath with temperature stability of ±0.01℃ (at 40℃)
• The tank temperature display has a minimum display/setting of “0.01℃”.
• Large 80L capacity, large window for convenient observation of the inside of the tank
• Equipped with various safety features such as overheating prevention and water level drop alarm.
• Selectable timer function with auto-stop and auto-start (maximum 99 hours 59 minutes)
• The T-105Be is energy-saving (AC100V 15A) and can be used with a wall outlet, but there is also the T-105B which prioritizes heating capacity.

Usage example

With an 80L tank capacity and observation windows on both sides, it is used for incubating many samples, material testing, thermometer testing, and more.

External dimensions	W680×D575×H420mm
Internal dimensions of the tank	W500×D500×H350mm
Effective dimensions inside the tank	W500 x D500 x H280mm Window dimensions W393 x H218mm (both sides)
Capacity (L)	80
Temperature range (°C)	Room temperature +5℃ 60℃ *When using the lid, it is not possible to adjust the temperature to room temperature + 5°C.
temperature stability	±0.01℃ (at 40℃)
temperature control	Digital temperature indicator and controller, PID control system, 1/100°C temperature display and setting.
heater	Sheath type 1.4kW
Agitator	Magnetic pump jet agitation system
safety equipment	Leakage circuit breaker, self-diagnostic function (prevention of overheating of tank temperature, heater disconnection, low water level, temperature sensor malfunction, triac short circuit)
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
accessories	Stainless steel height-adjustable shelf board (1 set)
power supply	AC100V 15A 50/60Hz, 2m cord with plug.
others	Drain opening outer diameter Φ16mm
weight	42kg

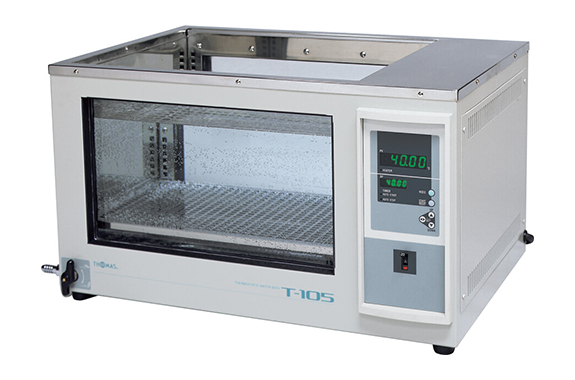

Illustrations
