Raw Material Types: Manufacturers broadly classify activated carbon products into plant-based and coal-based categories based on their raw materials.
Quality Assurance: We inspect the KEMY CARBON TA-30 series for water treatment in strict accordance with JWWA A 114:2006 or JIS K1474:2014 standards.
Custom Manufacturing: Our facility produces custom activated carbon tailored to specific client requirements. Contact our team to discuss your needs.

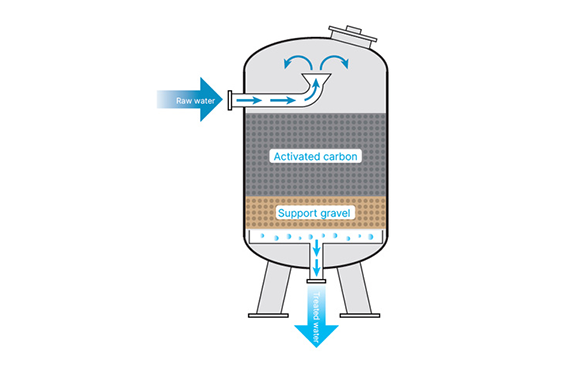

Mechanism of Organic Removal
Porous Structure: Steam activation creates fine pores within the carbon matrix, categorized into macropores, mesopores, micropores, and sub-micropores.
Targeted Adsorption: Larger organic compounds enter macropores and mesopores, while finer particles penetrate micropores and sub-micropores.
Pollutant Removal: The activated carbon traps these organic adsorbents within its pore network to purify raw water effectively.
Product Specifications
| Organic substances removal | Free residual chlorine removal | ||
| Operating Environment | Place _of installation | Indoor _or outdoor | |
| Temperature | 0～40℃ | ||
| Raw Water | Water temperature | 0～40℃（No freezing） | |
| Water quality | Water contained organic substances | Free residual chlorine removal : not more than 1.0mg/L | |
| General Conditions _of Use | Filter material type | Coal-based activated carbon TA-30C | Coconut-based activated carbon TA-30N |
| Filteration velocity | LV5h-1 | LV15h-1 | |
| Max. operating press. | 0.3MPa | ||
| Treated Water | Water quality | According to result _of water test | not more than 0.1mg/L |
| Backwash Water | Backwash velocity | SV 15～25h-1 | |
