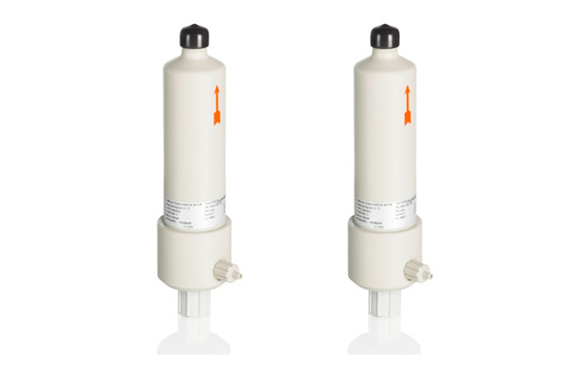

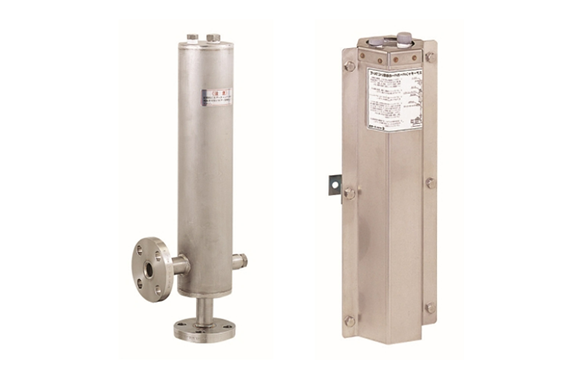

Tohkemy Air Chamber Pump Accessories

Manufacturer: Tohkemy Corporation
Model: Air Chamber

Product Description

It is highly advisable to add an air chamber. Utilizing the compressibility of air, the air chamber converts the pulsating flow of the pump into almost continuous stream. This can prevent acceleration resistance, over-feeding phenomenon, piping vibrations and other adverse effects and prolong the service life of the diaphragm and the pump itself. Air must be replenished.

Outline drawing / model

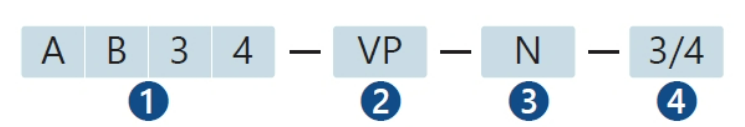

Model number description

1: Model
AB is with baffle plates,
A is without baffle plate.
2: Material

VP	PVC ordinary pipe	6	SUS 316
VT	PVC thick pipe	9	SUS 316L
4	SUS 304	Z	Others

3: Connection
F: Flange (JIS 10K), N: Rc female screw
4: Nominal diameter
Notes) For the material of an air chamber, use SUS (stainless steel) so far as that material is well resistant against your solution.
The resin-made air chamber is unavoidably affected by ultraviolet rays and liquid chemicals after a long time of use.
It is recommended to replace the air chamber with a new one every 3 years or so for added safety. Also, be sure to mount
an air chamber cover on a resin-made air chamber.

Model	Dimensions φ × L (mm)	Volume (ℓ)	Materials / Withstanding Pressure (MPaG)	Connection		Applicable Pump Model
Model	Dimensions φ × L (mm)	Volume (ℓ)	Materials / Withstanding Pressure (MPaG)	For SUS Specification (Flange JIS 10K)	Others (Female Screw)	Applicable Pump Model
A 22	2B × 200	0.4	PVC/0.5 VT/0.7 SUS/1.0	15A	Rc1/2	3G～12G・2Y・6Y・1～25V
AB 32	3B × 200	1		15A	Rc1/2	30G～100G・10Y～120Y・50～130V
AB 34	3B × 400	2		20A	Rc3/4	100W・200W・4R・1L・2L・200G・350G
AB 44	4B × 400	3		25A	Rc1	500W・6R・9R・3L・6L・500G・700G
AB 46	4B × 600	4.5		40A	Rc1½	1000W・1500W・14R・16R・D-32R・9L・13L
AB 66	6B × 600	10		40A	Rc1½	22R・27R・D-44R・D-54R・17L
AB 86	8B × 600	18		50A or 65A	Rc2 or Rc2½	34R・D-68R

Dimensions

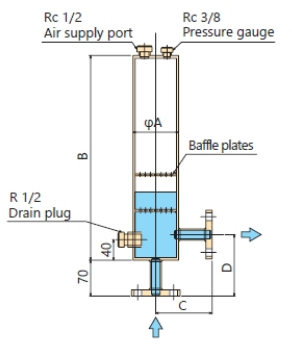

SUS spec

SUS Specifications
(Unit: mm)

Model	A	B	C	D	Weight Approx. (kg)
AB 32	3B	200	110	120	4.6
AB 34	3B	400	110	130	5.4
AB 44	4B	400	135	135	9.2
AB 46	4B	600	135	135	13
AB 66	6B		150	150	20
AB 86	8B		170	180	30

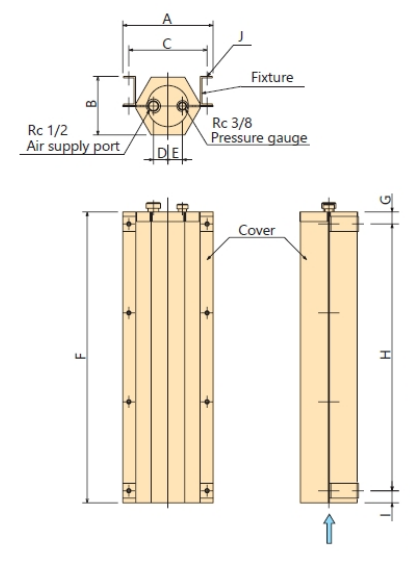

PVC spec

PVC Specifications

Model	A	B	C	D	E	F	G	H	I	J	Approx. Weight (kg)
											Air Chamber	Cover
A 22	122	68	100	(1Rc 3/8)		215	108	107		φ9 2 Holes	0.5	1.1
AB 32	158	97	135	22	22						1.0	1.4
AB 34						425	213	212			1.5	2.4
AB 44	187	122	164	30	30						2.3	2.8
AB 46						630	26	579	25	φ9 4 Holes	2.8	4.2
AB 66	243	173	220	40	40						5.5	5.8
AB 86	302	224	280								8.4	7.0
