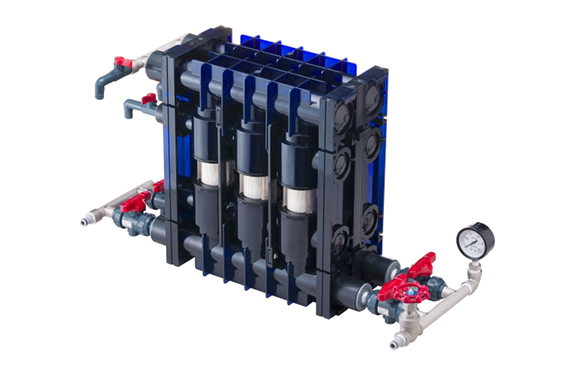

Tohkemy Acti Supply Filter Ultra Precision Membrane And Fiber Filter Media

Manufacturer: Tohkemy Corporation
Model: Acti Supply Filter

Features

Non-Electric Operation

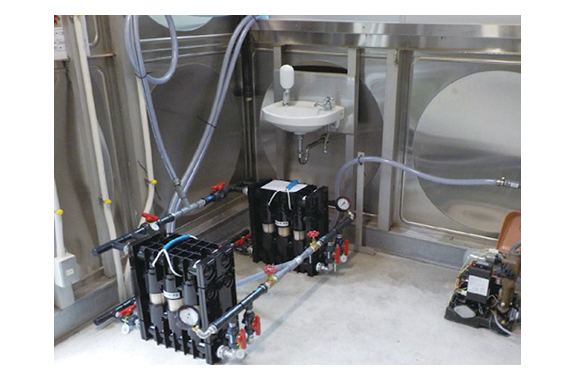

Manual hand pumps and non-electric engine pumps power this system during blackouts for full redundancy. Connected elevated tanks also supply water naturally through gravity flow.
Bacteria Removal
Membranes with a 0.05 μm pore size filter out common bacteria, E. coli, Cryptosporidium, and Legionella.
Backwash Reusability
Reversing the flow cleans the membrane, allowing repeated long-term use.
Compact, High-Capacity Output
A single compact unit purifies roughly 25 L/min (1,500 L/hour), depending on raw water quality and pressure.
Certified Quality
The system integrates an AMST-001 (7th Edition) certified module, meeting standards set by the Membrane Separation Technology Promotion Association.

Specifications

Membrane Material		PVDF
Nominal Pore Size		0.05 μm
Filtration Method		External Pressure Full-Flow Filtration
Membrane Shape		Hollow Fiber (Capillary Type)
Housing Material		Polycarbonate, U-PVC
External Dimensions *1		W 760 mm × D 480 mm × H 450 mm
Weight *1		Main Unit Weight Approx. 12 kg, Operating/Storage Weight Approx. 20 kg
Operating Conditions	Maximum Pressure	0.2 MPa
Operating Conditions	Water Temperature	5–40 °C
Feed Water Capacity *2	Well Water	Approx. 15 L/min
	Fire & Water Tank	Approx. 20 L/min
	Tap Water	Approx. 25 L/min
Membrane Storage Period (Store in a Cool, Dark Place) *3		1 Year in the Specified Storage Solution (NaHSO₃: 1500 mg/L)
Optional Items *4	Engine Pump	Gasoline Reciprocating Engine
	Manual Pump	High-Lift Hand Pump
	Faucet Set	Treated Water Faucet (13A)
	Sterilization Set *5	Metering Device Main Unit (Approx. 280 g, W 85 × D 34 × H 150 mm), Ejector
	Sterilant *6	Sodium Chlorite 6% (Purelax)
	Simple Water Quality Tester	Residual Chlorine Meter, pH Meter, pH Meter
	Preservative Solution	Sodium Bisulfite (NaHSO₃)

*1 External dimensions and weight are subject to change without notice.
*2 Water supply capacity varies depending on water temperature, water quality, operating time, etc. This product is intended for emergency use during disasters, with an operating time of one week to one month. For extended use beyond this period, please use a system incorporating SMF modules.
*3 Storage life may vary depending on storage conditions such as temperature and humidity.
*4 Optional items are subject to change without notice regarding contents and specifications.
*5 A faucet set is required.
*6 A faucet kit and sterilizer set are required. The sterilant has a shelf life of approximately one year.
