A ring cone variable speed reducer is used, and models with other rotation speeds can be selected.
Since a manufacturer-specific motor is used, motor of other manufacturer can not be selected.
The standard impeller is a 2 stages of 2-blade pitched paddle, but the blade shape may be changed depending on mixing purpose and specifications.
Please contact us for detailed specifications and dimensions.
Tohkemy Corporation

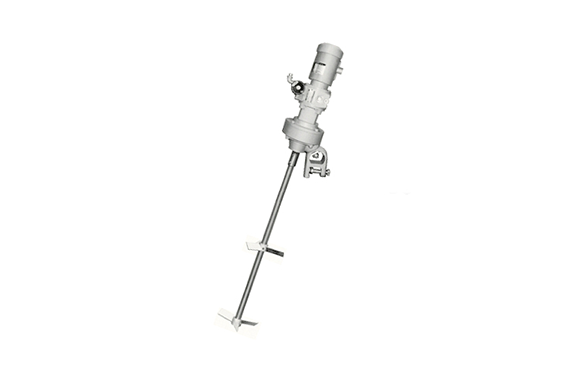

Tohkemy Portable Type Small NKR Agitator And Tank
Manufacturer: Tohkemy Corporation
Model: Portable Type Small NKR
Features
Corresponds to changes in the purpose of agitation such as viscosity fluctuations in small volumes
A specialized mounting clamp allows technicians to precisely adjust the shaft angle, optimizing fluid mixing dynamics and eliminating stagnant zones within the vessel.
By using the ring cone variable speed reducer, it is possible to shift from 0 rotation.
Standard specifications
| Model No. | Power | Rotation speed (min⁻¹) | 2-Blade Paddle diameter | Shaft(mm) | Approximate equipment mass (kg) | Maximum agitating capacity (m³) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Output (kW) | Number of poles (P) | 50Hz | 60Hz | Blade diameter φD | Shaft diameter φd | Standard length L | Dilute liquid | Medium viscosity liquid | ||
| NKR4-001-3 | 0.1kW 200V | 4 | 0～160 | 0～192 | 200 | 20 | 1,200 | 27 | 0.6 | 0.2 |
| NKR4-001-5 | 0～104 | 0～125 | 250 | |||||||
| NKR4-002-3 | 0.2kW 200V | 0～166 | 0～200 | 250 | 25 | 1,300 | 35 | 1.25 | 0.4 | |
| NKR4-002-5 | 0～100 | 0～120 | 300 | |||||||
| NKR4-004-3 | 0.4kW 200V | 0～166 | 0～200 | 300 | 25 | 1,500 | 40 | 2.5 | 0.8 | |
| NKR4-004-5 | 0～100 | 0～120 | 400 | |||||||
