Tohkemy Corporation

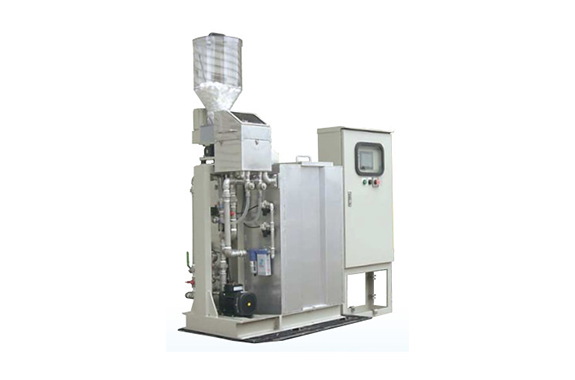

Tohkemy PAD-L Powder / Screw Feeder Type Unit Systems
Manufacturer: Tohkemy Corporation
Model: PAD-L
Features
Not only for polymer powder but also various powder.
Dissolving accuracy (+/-5%)
Dissloving tank is more conpact than a conventional type.

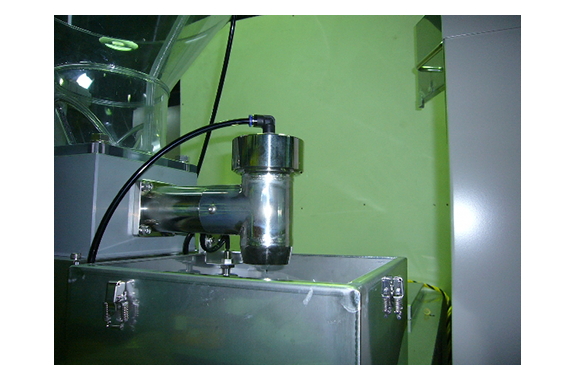

Less scattering powder by the ejector
Improved operability with the touch screen.
Specification
| Items | Specifications | |
|---|---|---|
| Dissolving capacity | 900 [L/h] (In dissovling time 20 minutes) | |
| Dissolving tank capacity・material | Effective 300[L] SUS304 | |
| Hopper capacity | Effective 30・60 [L] Transparent PVC or_ SUS304 | |

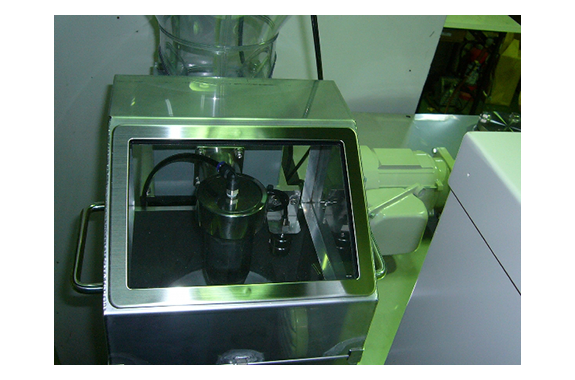

| Screw feeder | Capacity | maximum 1200 [g/min] |
| Motor | 90W (variable speed control by inverter) | |
| Agitator | Revolution | 200 /240 [rpm] 50 / 60 [Hz] |
| Motor | 0.2 [kW] | |
| Line pump | Capacity | 75 [L/min]×25 [m] |
| Motor | 0.75 [kW] | |
| weight | Product weight | Approx 250[kg] (except for control panel) |
| Operating weight | Approx 600[kg] (except for control panel) | |
| Utility | Power source | AC 200/220V 50/60Hz 3phase |
| Feed water | 40 [L/min] ×0.2 [MPa] or_ over | |
| Instrument air | 5 [L/min] ×0.49 [MPa] | |
| Control method | PLC + Touch panel | |
| PAD | – | L | 90S | – | 30 | D | – | 20 | 5 |
|---|---|---|---|---|---|---|---|---|---|
| [1] | [2] | [3] | [4] | [5] | |||||
| Dissolving capacity | 90S:900L/hr |
|---|---|
| Hopper capacity | 30:30L 60:60L |
| Feed air system | D:Compressed air feed (w/ dry air) P:Dry air feed (w/o dry air) R:Dry air feed (w/ regulator) |
| voltage | 20:200V 22:220V 40:400V 44:440V |
| Frequency | 5:50Hz 6:60Hz |
Dimensional outline drawing
Flow sheet
