TOMITA ENGINEERING
Tomita Engineering PN Series Poly Nozzle
Manufacturer: Tomita engineering Co.,Ltd.
Model: PN Series
Feature
- High-flow nozzle that can be attached to a 1/4-inch female threaded connector.

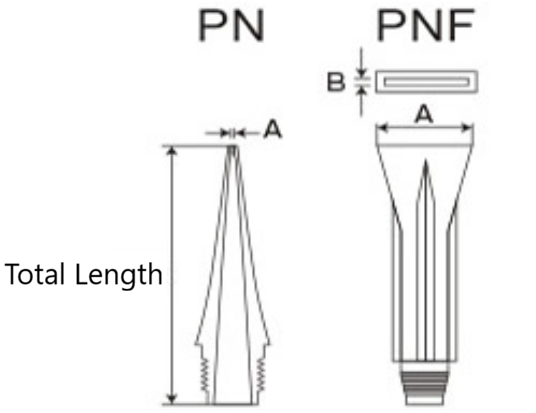

Specifications (Unit : mm)
| Model | Connection port | full length | A Interior dimensions | B interior dimensions |
| PN-66 | 1/4PT | 66 | φ3.2 | – |
| PN-100 | 1/4PT | 102 | φ3.2 | – |
| PNF-19-3 | 1/4PT | 102 | 19 | 3 |
| PNF-25-3 | 1/4PT | 102 | 25.4 | 3 |
| PNF-44-3 | 1/4PT | 102 | 44.4 | 3 |
