TOMITA ENGINEERING

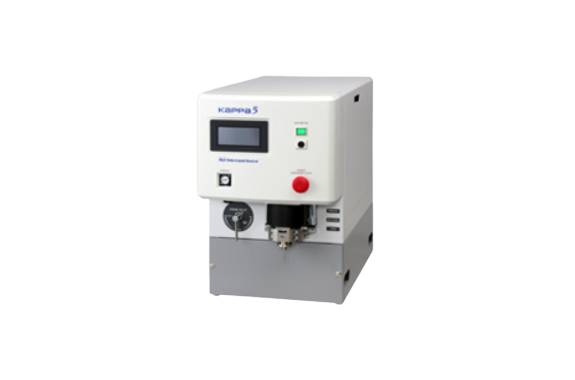

Tomita Engineering KAPPA-5 Two Liquid Micro-Quantity Metering And Dispensing Device
Manufacturer: Tomita engineering Co.,Ltd.
Model: KAPPA-5
Feature
- Once you put the materials into the tank, the machine processes them automatically.
- Lightweight and compact design for easy portability.
- High-precision dispensing with a unique positive load metering system.
- A wide range of options and applications.
- It comes with a variety of options, including a heater and degassing functions.
Specifications
| Discharge volume range | 0.03–2.0 mL |
| Adaptation ratio range | 100:100～100:5 |
| Usable viscosity | 1 to 100,000 mPa·s (High viscosity can be used by heating) |
| Raw material tank | 1L:1L (combination of stainless steel rectangular tanks) |
| Washing tank | 10L pressure tank (stainless steel) |
| Weighing method | Volumetric measurement (posiroto method) |
| Mixer | Dynamic mixer or static mixer |
| Drive system | Air cylinder drive |
| Control method | Compact PLC control |
| Air source | 0.5 MPa |
| Power consumption | AC100V/500W |
| Main unit dimensions | W350×D630×H545 |
