Manufacturer: Tomita engineering Co.,Ltd.

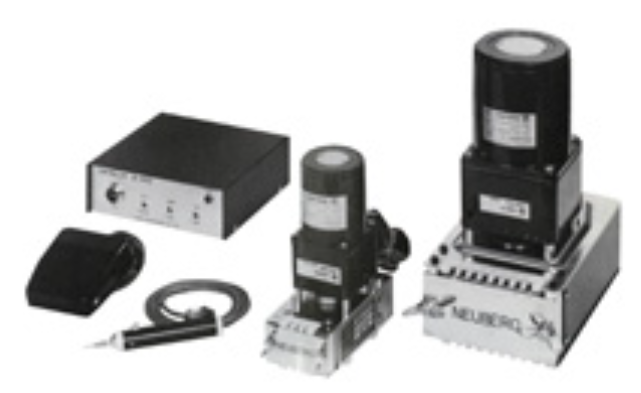

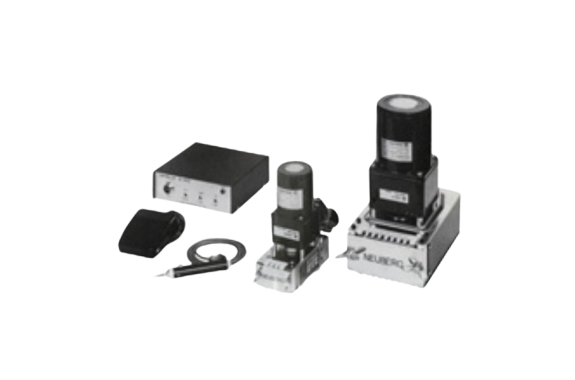

Model: NPD Series

Feature

• A special volumetric measurement system using tubing enables highly accurate quantitative dispensing unaffected by liquid viscosity.
• Dispensing volume is 0.1μR (0.0001cc) to 920μR (0.92cc) per dispensing point, with 1 to 6 points dispensing simultaneously, at a cycle of 1.2 to 2 seconds.
• The metering and piping tubing can be selected according to the properties of the liquid being used, making it suitable as a control dispenser for any liquid.
• It has a unique negative pressure mechanism that absorbs the liquid at the outlet after quantitative dispensing, stopping the process and preventing solidification at the outlet.
• For tasks requiring liquid changes during operation or cleaning and sterilization after operation, the system is easy to operate and allows for confirmation of the cleaning status.
• No pressurized tank or pressurized air is required, and it offers exceptional performance, especially for micro-dispensing of low-viscosity liquids.
