Tomosada Kenki N Type Handy Grout Injector

Manufacturer: Tomosada Kenki Corpotatoin., Ltd.
Model: N Type

Features

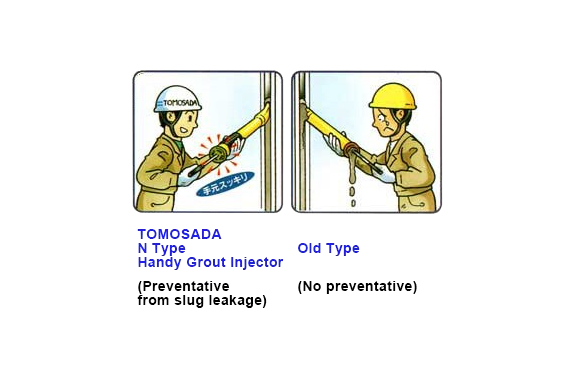

Prevent the leakage of slag to your hand to safely apply the upward injection
Beautiful finish with quick and precise operation
Nose shape can be changed according to applying spots”

Applications

Filling (injection or press fitting) Mortar to gaps like below;

1. Around window frame (vertical and horizontal)
2. Around door sash (vertical and horizontal)
3. After driving anchor in piping duct
4. Block joint spot
5. ALC joint spot
6. Underneath the floor beam
7. Block joint area between sidewalk and driveway
8. Elevator door frame fitting area
9.Gap of partitioning and etc.

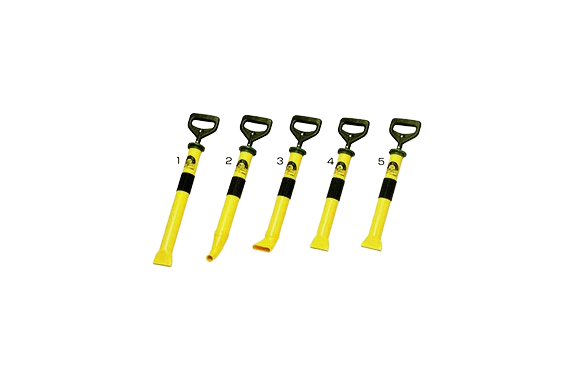

TYPE-N Shape1. Straight Outlet
Long
2. Round Angled
ALC Type
3. Angled Outlet
Angled
4. Straight Outlet
Standard
5. Straight Outlet
Standard
6. Round Outlet
Standard
Outlet FormWidth (mm)18Dia.25181810Dia.15
Length (mm)82828295
Folding AngleStraight30°45°StraightStraightStraight
CylinderOuter Dia.616161616161
Tube Length (mm)525425425425425425
Overall Length (mm)760720690660660770
Weight (kg)0.870.80.80.780.770.8
Stroke Volume (L)1.20.90.90.90.90.9
